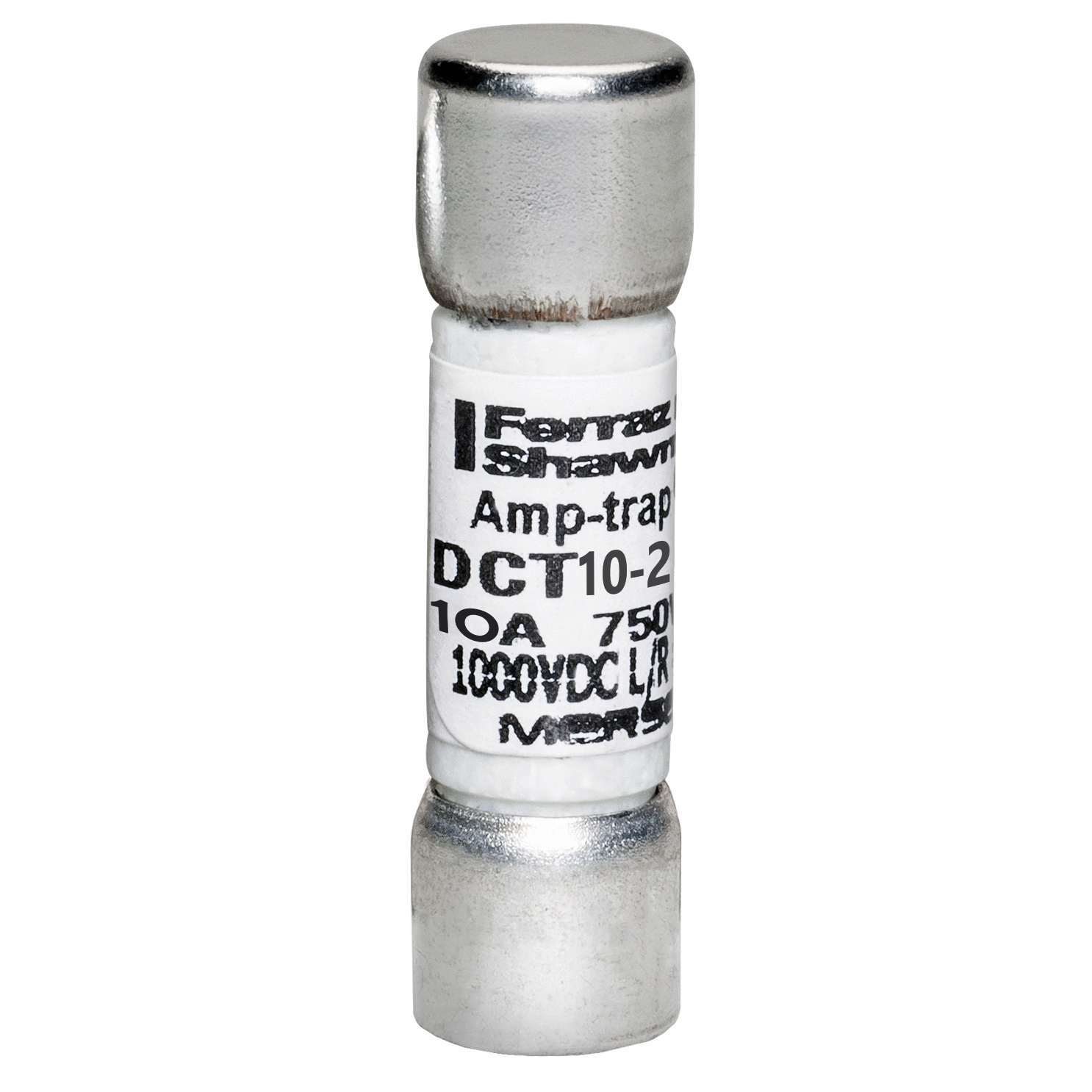

Fuse DCT - Midget - Fast-Acting 750VAC 1000VDC 10A Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # DCT10-2 | Electrozad South Part # 198037
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Amp-Trap DCT fuses were developed to meet requirements coming from new applications such as protection of photovoltaic cells, multi meters and compact on board traction equipment for auxiliary circuits. This high performance DC fuse in its compact size offers multiple competitive advantages particularly for international applications where DC voltage requirements are above 600VDC.

Technical Information

Amperage
10 A
Applications
Multi meters; 690V Transformers; DC Traction Equipment
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
100 kA
Mounting Type
Clip
Rated Voltage AC
750 V
Rated Voltage DC
1000 V
Response Time
Fast-Acting
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Supplemental Protection

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001352455
Class
M
GTIN
30782001352456
Weight
0.016 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
