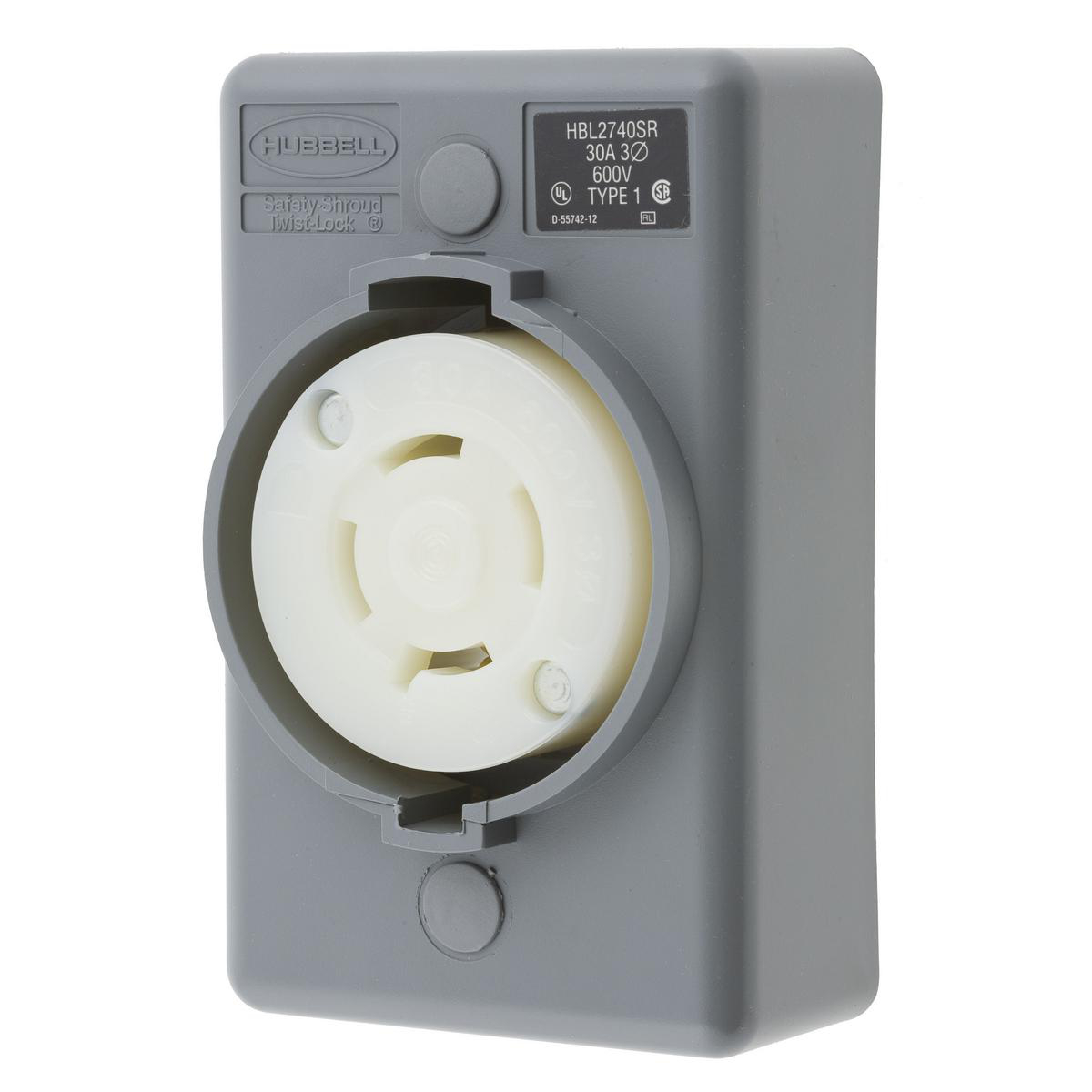

Receptacle single flush pc 3P4W 30A L17-30R grey

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2740SR | Electrozad South Part # 198009
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
TWIST-LOCK® safety-shroud single receptacle made of polycarbonate with 3 pole, 4 wire grounding, 3 Phase 600 V AC, straight.

Technical Information

Amperage
30 A
Applications
Heavy Duty Industrial
Conductor Size
12 - 8 AWG
Current
30 A
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw, Recessed/Flush
NEMA
L17-30R
Number of Gangs
1
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 To 85 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Shrouded, Heavy Duty
Voltage
600 V
Wattage
18000 W
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234908
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585234908
Product UPC
78358523490
Weight
0.5 lb

Dimensions

Height
1.71 in
Length
4.56 in
Width
2.84 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Catalog number and color coded voltage rating are visible even when in use
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
