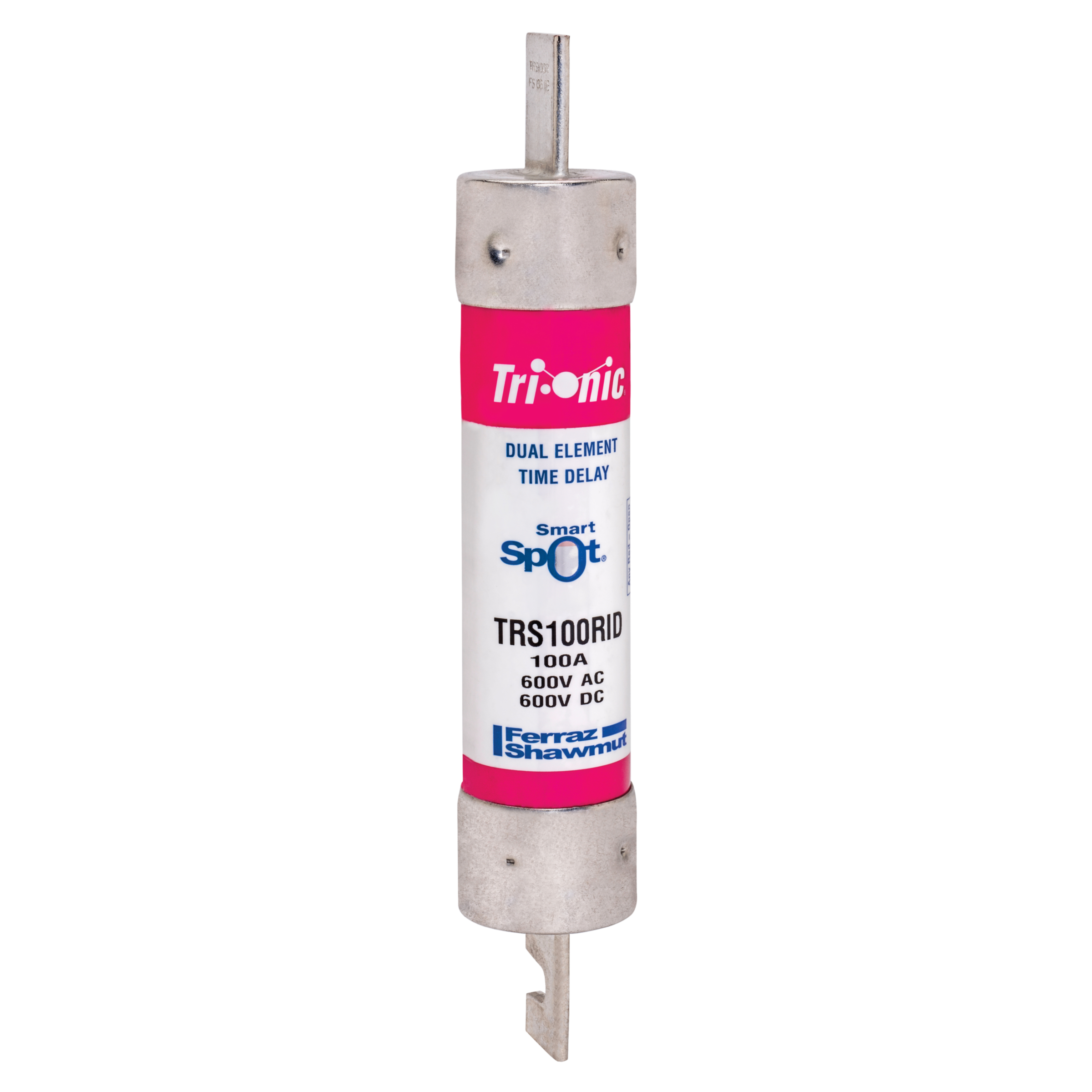

Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 100A Blade SmartSpot® Tri-Onic®

Manufacturer: Ferraz Shawmut Mersen | Catalog # TRS100RID | Electrozad South Part # 197937
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
100 A
Applications
Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class RK5
Indicator
SmartSpot®
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Time Delay

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001415174
Class
RK-5
GTIN
30782001415175
Weight
0.628 lb

Dimensions

Diameter
1.31 in
Length
7.88 in
