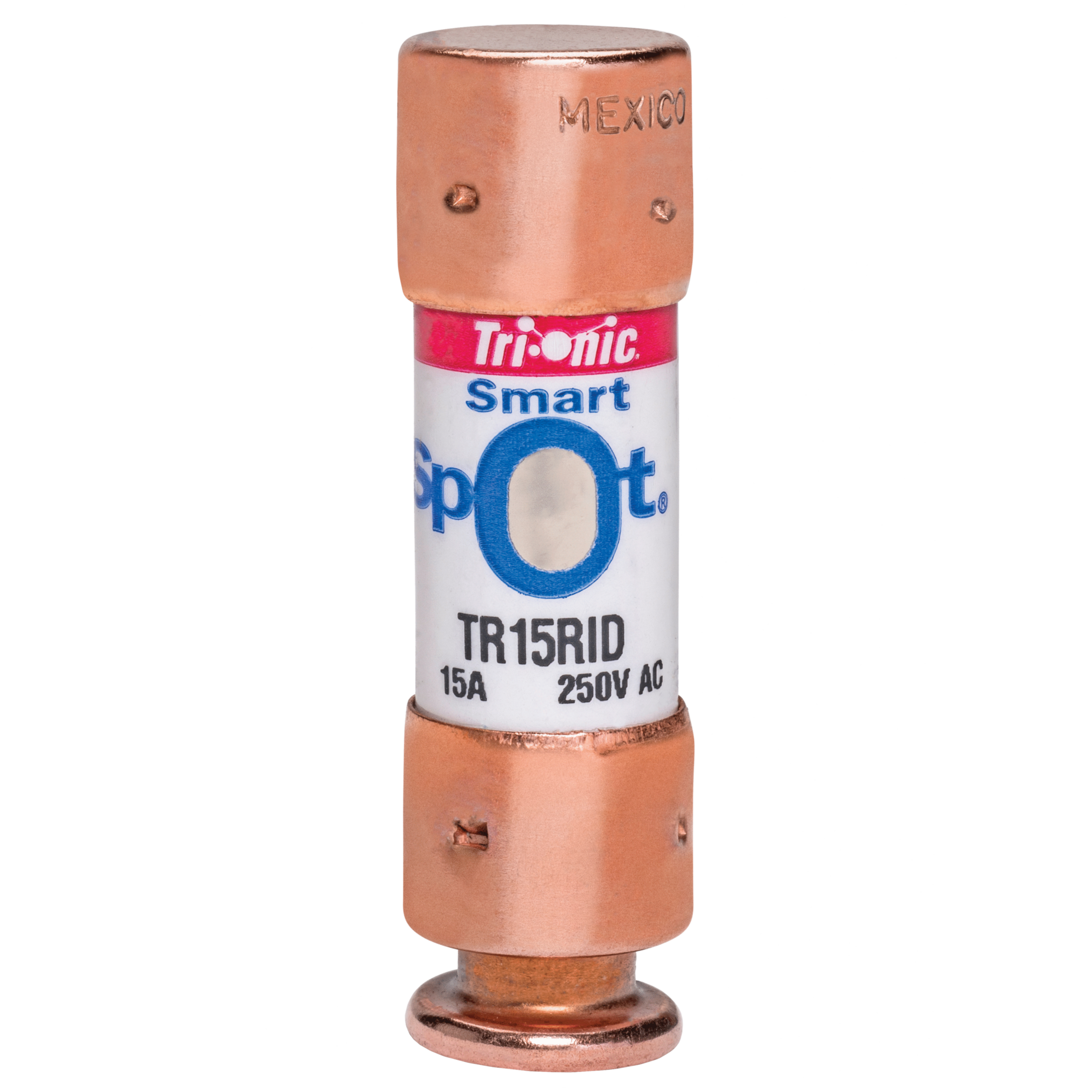

Fuse TR-R - Class RK5 - Time-Delay 250VAC 160VDC 15A Ferrule SmartSpot® Tri-Onic®

Manufacturer: Ferraz Shawmut Mersen | Catalog # TR15RID | Electrozad South Part # 197914
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
15 A
Applications
For Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General Purpose Equipment
Connection Type
Ferrule
Contact Material
Tin Plated Copper
Frequency
50/60 Hz
Fuse Class
Class RK5
Indicator
SmartSpot®
Insulation Material
PolyTube
Interrupt Rating
200 kA at AC, 20 kA at DC
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
160 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Tri-Onic®

General Product Info

12-Digit UPC
782001414764
Class
RK-5
Construction
Polyester
GTIN
30782001414765
Weight
0.037 lb

Dimensions

Diameter
0.56 in
Length
2 in
