Receptacle 5-20R TR round duplex 20A 125V blk

Manufacturer: Leviton Manufacturing | Catalog # T5820-E | Electrozad South Part # 188679
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

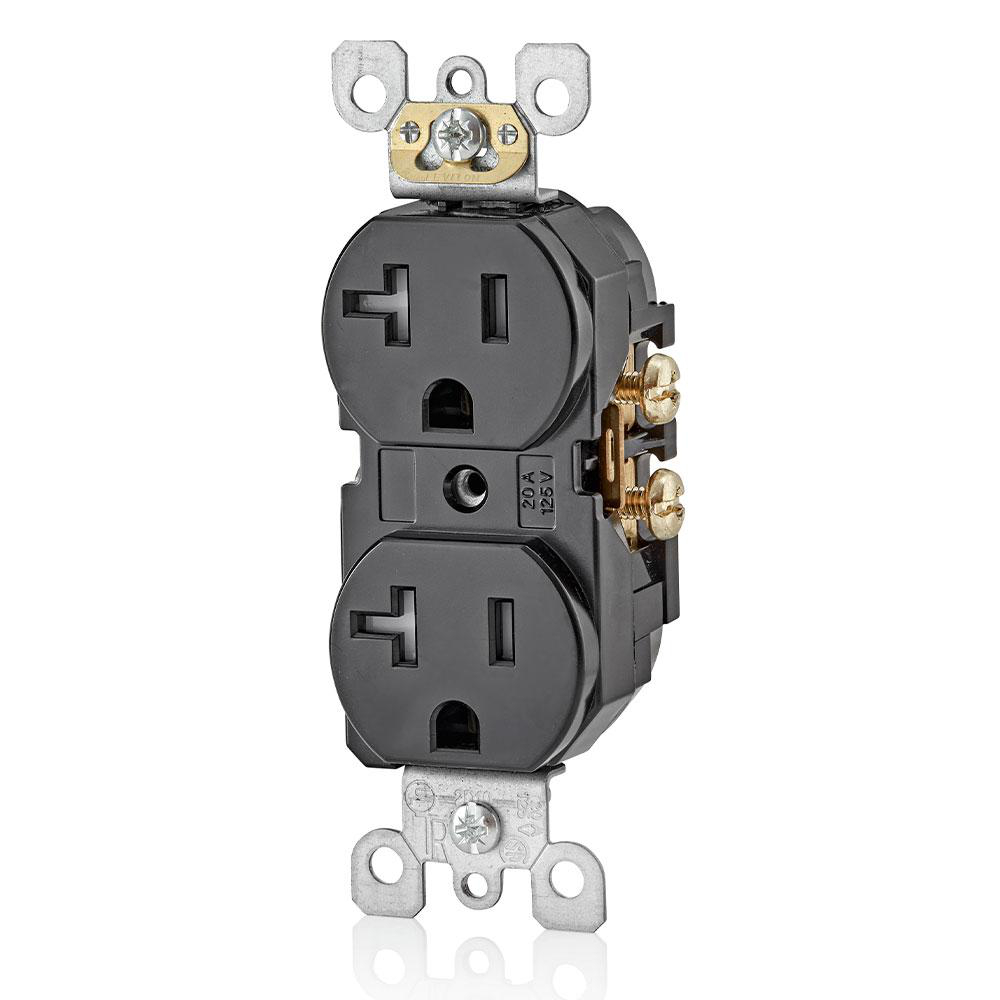

20A 125V, NEMA 5-20R, 2P, 3W, Tamper-Resistant, Duplex receptacle. Straight blade, Residential grade, Self grounding, Side wired only, Steel strap -black

Technical Information

Amperage
20 A
Applications
For Residential use
Body Material
Thermoplastic Nylon
Device Type
Duplex Receptacle
Face Material
Nylon
Grade
Residential
Grounding
Self-Grounding
Material
Thermoplastic Nylon Face/Body
Mounting Type
Flush
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Standard
CSA,NOM,UL
Style
Straight Blade
Termination Type
Side Wire
Torque
14 lb-in
Type
Tamper-Resistant, Self Grounding
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT RESIDENTIAL

General Product Info

12-Digit UPC
078477450246
Color
Black
GTIN
00078477450246
Product Type
Standard

Dimensions

Height
4.2 in
Length
1.351 in
Width
1.184 in

Certifications & Compliance

Country of Origin
China
