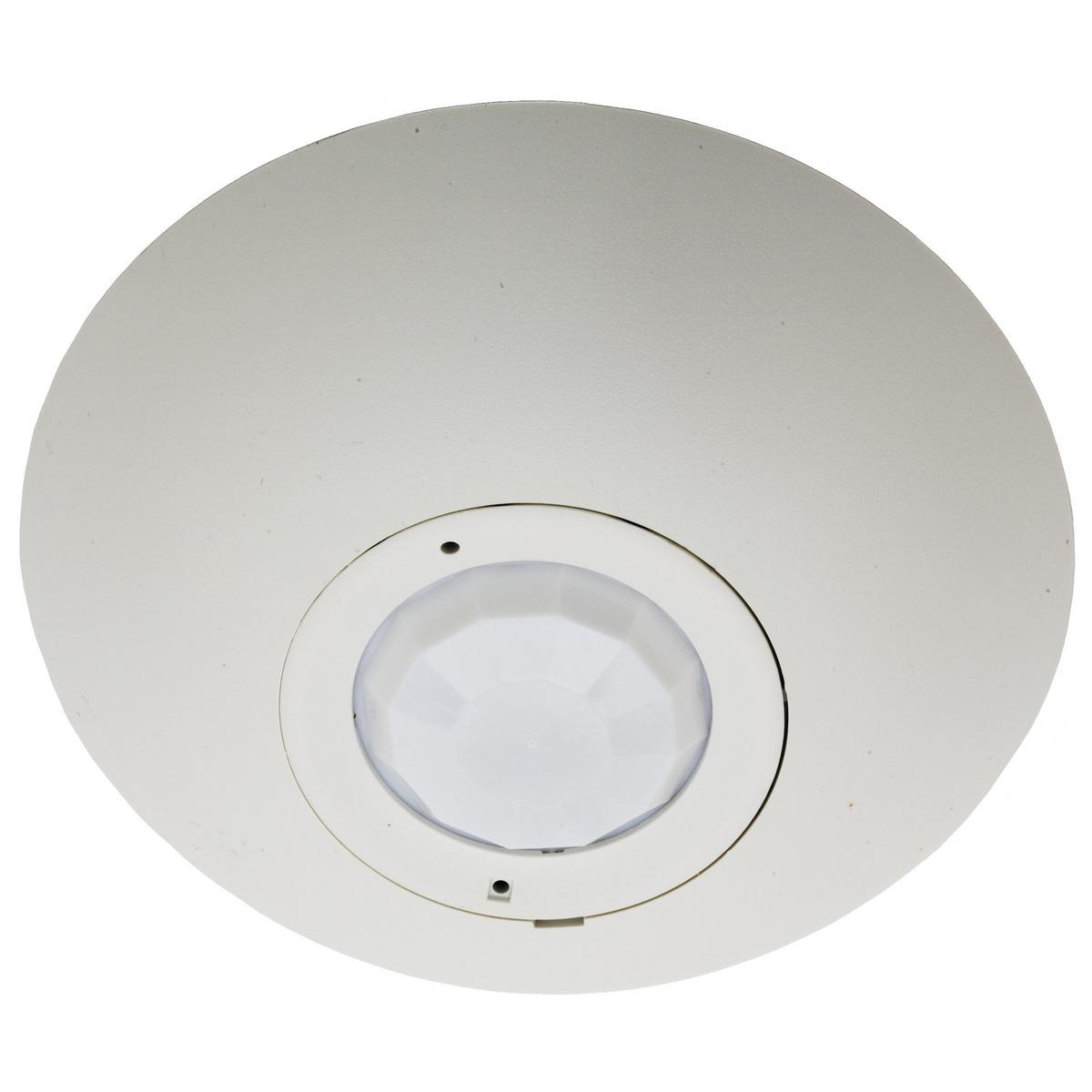

AT PIR OCCSENS, CEILING, 1500 SQ FT

Manufacturer: Hubbell Wiring Devices | Catalog # ATP1500C | Electrozad South Part # 188540
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual Manufacturer Warranty
Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Passive Infrared Ceiling Sensor, 1500 Square Feet Coverage

Technical Information

Applications
Compatible with most LED and CFL
Indicator
PIR= Red LED
Material
ABS
Mounting Type
Ceiling Mount
Operating Cycles
6k
Operating Temperature
0 To 40 degrees C
Sensing Range
8 to 12 Feet Mounting Height
Standard
ASHRAE 90.1,CULus,UL244A
Style
Ceiling Mount
Type
Non-Reversing
Voltage
24 V

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
HMOSS

General Product Info

12-Digit UPC
783585392530
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTIN
00783585392530
Product Series
Passive Infrared
Product UPC
78358539253

Dimensions

Height
1.5 in
Length
7.000 in
Width
5.400 in

Certifications & Compliance

Country of Origin
China
Overview
  • \"Install and Forget\" operation. Auto-adjusting adaptive technology eliminates manual adjustments
  • Office White ABS enclosure blends with ceiling tile
  • Coverage 1500 sq. ft. (360°), low voltage sensor, low voltage sensor
  • Long range major motion detection
  • Red LED indicates passive infrared detection
