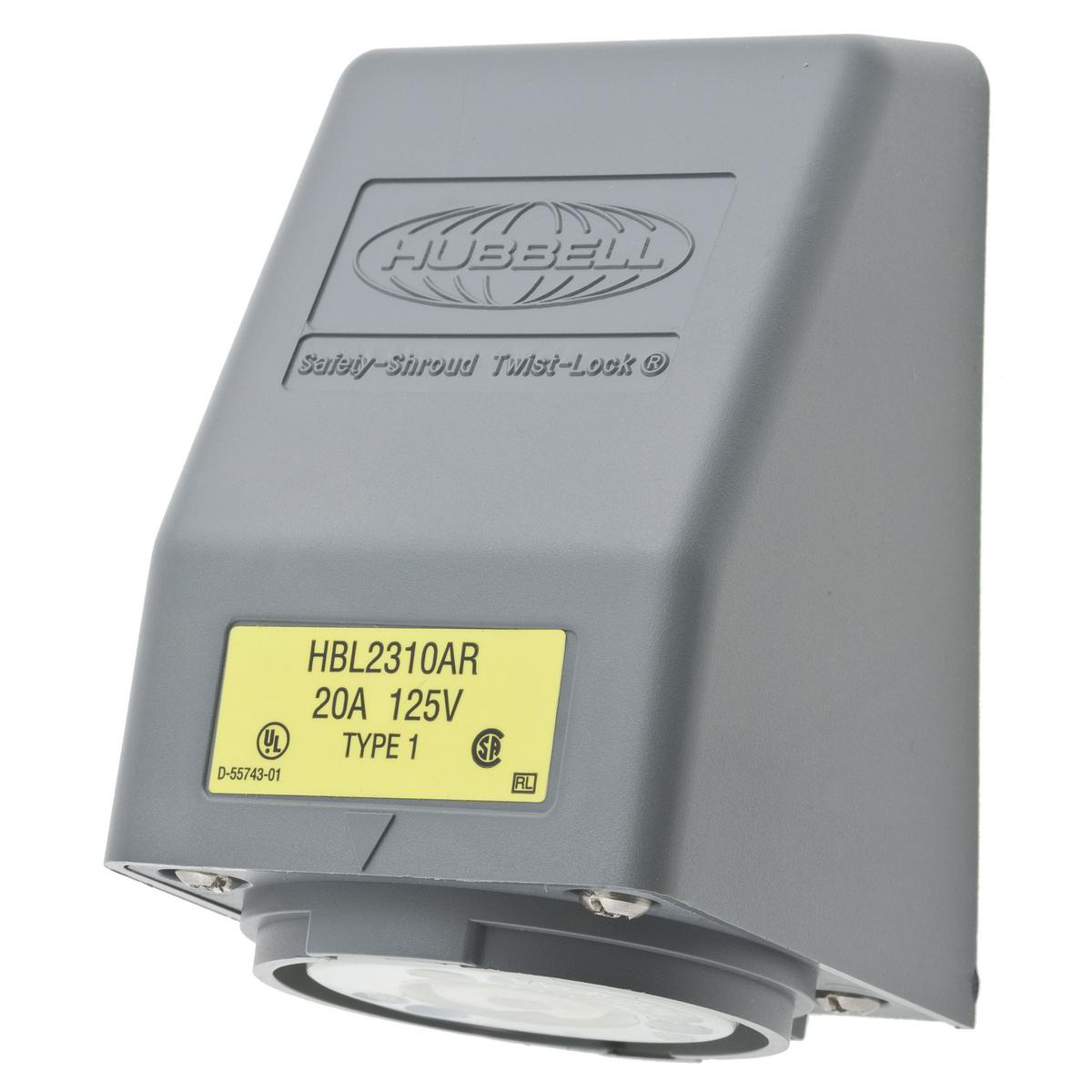

Receptacle safety shroud twist-lock 1-gang angle housing 1HP NEMA L5-20R 20A 125V grey

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2310AR | Electrozad South Part # 182328
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
TWIST-LOCK® Safety-Shroud® Receptacle with angle housing. 2-pole 3-wire grounding. Back wired. Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected. Made of clear polycarbonate terminal retainer, impact modified PBT housing. Steel, nickel plated 0.08 inch curved, scalloped terminal clamp. #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw. #10-32 brass (green) ground screw. 16 to 8 AWG solid or stranded copper wire termination. Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments.

Technical Information

Amperage
20 A
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
1-Gang, Angled, Shrouded, Heavy Duty
Voltage
125 V
Wattage
2500 W
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234007
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTIN
00783585234007
Product UPC
78358523400
Weight
0.7 lb

Dimensions

Height
2.85 in
Length
4.77 in
Width
3.14 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Catalog number and color coded voltage rating are visible even when in use
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
