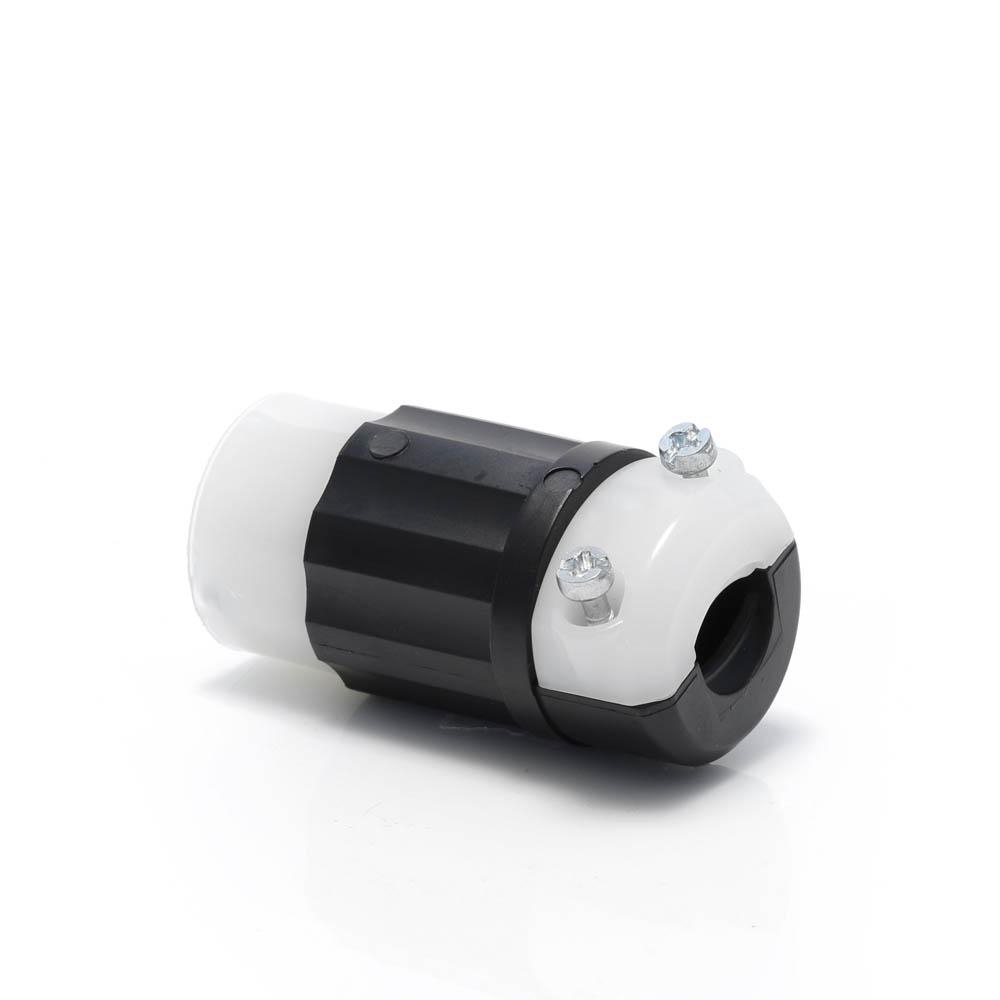

Connector locking 2P3W 125V 15A black-white

Manufacturer: Leviton Manufacturing | Catalog # ML2-C | Electrozad South Part # 182054
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing
Levitons industry leading locking grade connector offer superior performance, long lasting reliability. Ergonomic fluted body design with radial grip ridge is ideal for gripping, turning and pulling. NEMA configuration, agency certifications and device rating are molded on front of the device to assist with identifications. Molded in strip gage provides measurement for proper strip length of conductor.

Technical Information

Amperage
15 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Contact Material
Solid Brass
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Super Tough Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
1.258 Dia x 2.344 H IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-14 AWG
Type
Straight
Voltage
125 V
Wire Count
3
Wire Size
18 - 14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477987292
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477987292

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
