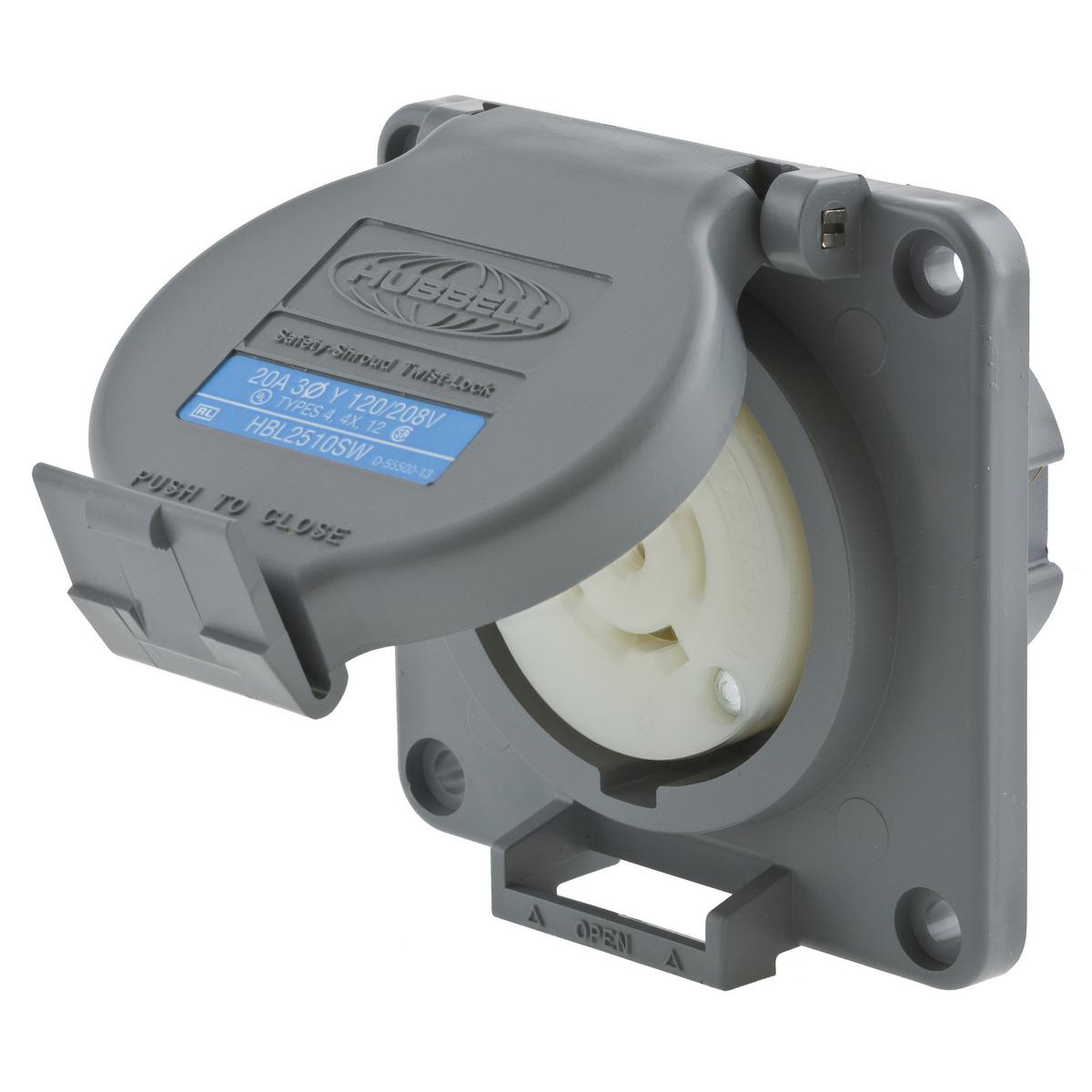

Receptacle L21-20R outlet+door 3ph 20A 120/208V bk

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2510SW | Electrozad South Part # 180134
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell ELASTOGRIP receptacles are standard strait blades 2 poles, 15-20 amp 125 volts and twist-lock 2-3 poles, 15-20-30 amp, 125-250-480-600 volts. Made of a white nylon insert connector into yellow elastomer thermoplastic housing with gland cable nut cable inser that providing protection against dust and water. A rubber closure cap seal is installed on female socket come as standard.

Technical Information

Amperage
20 A
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
14-8 AWG
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L21-20R
Number of Gangs
1
Number of Phases
3
Number of Poles
4
Number of Wires
5-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
4X,CSA,Type 12,Type 4,UL
TC Connection
Screw Terminal
Type
Heavy Duty, Shrouded
Voltage
120/208 V
Wattage
4160 W
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231501
Color
Gray and White
Environmental Conditions
Watertight
GTIN
00783585231501
Product UPC
78358523150
Weight
0.65 lb

Dimensions

Height
2.9 in
Length
3.75 in
Width
3.75 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Catalog number and color coded voltage rating are visible even when in use
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Catalogue number and color coded voltage rating are visible even when in use
