Receptacle isolated ground flush-mount 30A 125V

Manufacturer: Leviton Manufacturing | Catalog # 5371-IG | Electrozad South Part # 17247
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Industrial-grade heavy-duty flush mount single receptacle. Nylon face and body. Brass double-wipe line contacts. Galvanized steel strap. Side wired. Straight blade wiring. 2 HP AC horsepower rating. 2-pole. Isolated-grounding, 3-wire. NEMA-5-30R. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. Rated V-2 per UL94 flammability. -40 to 60..C operating temperature. Terminal accommodates up-to 4 AWG. Ratings are permanently marked on device. Applicable for factories, schools, hospitals and commercial office buildings.

Technical Information

Amperage
30 A
Applications
Commercial
Body Material
Nylon
Connection Type
Side Wired
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Isolated Ground
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Box
NEMA

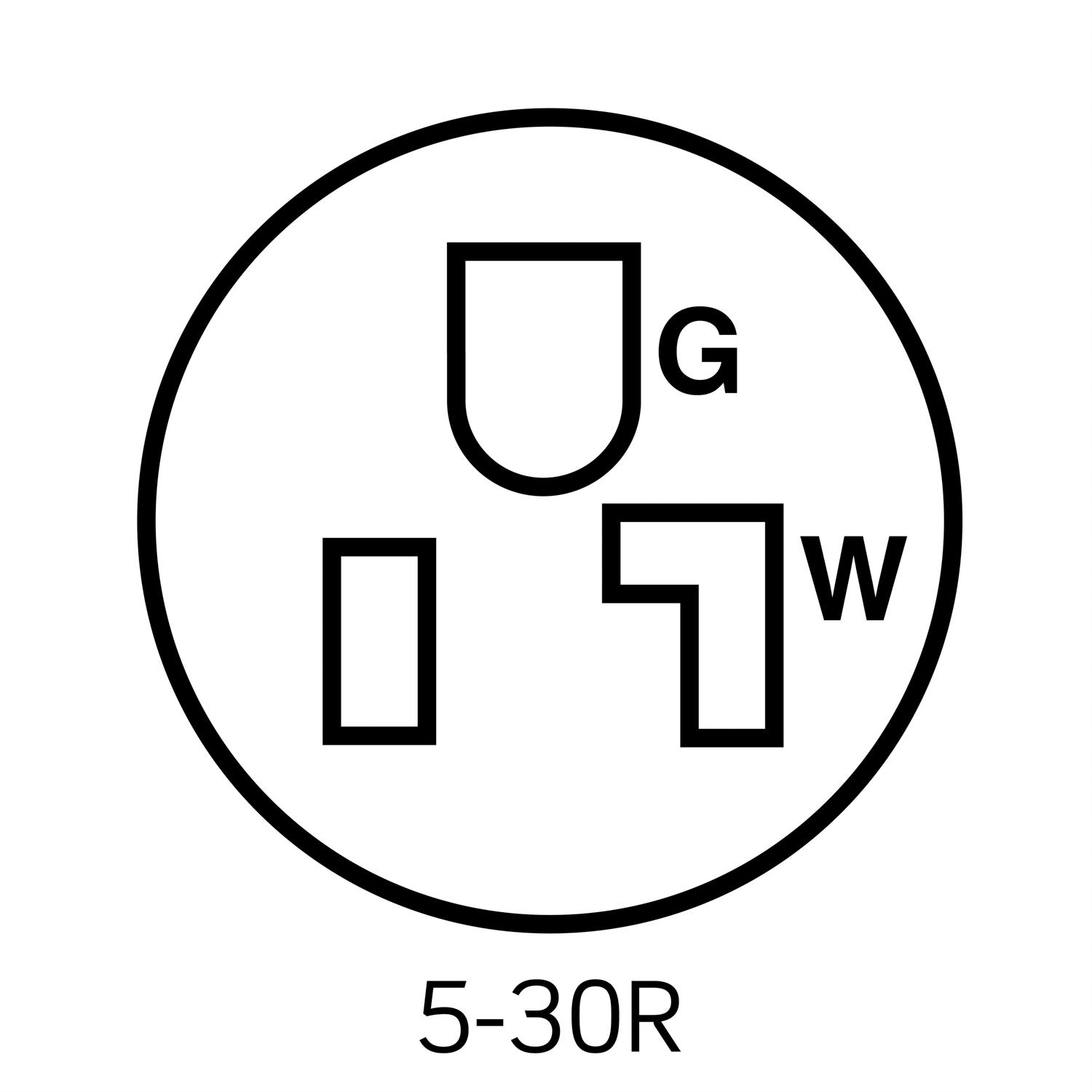

5-30R,WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
3.75 H x 2.50 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 To 60 degrees C
Temperature Rise
150 %
Type
Power Receptacle
Voltage
125 V
Wire Count
3
Wire Size
14-6 AWG

Manufacturer Information

Brand
TRADITIONAL DEVICES
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477823491
Color
Orange,Orange
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
50078477823496

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
