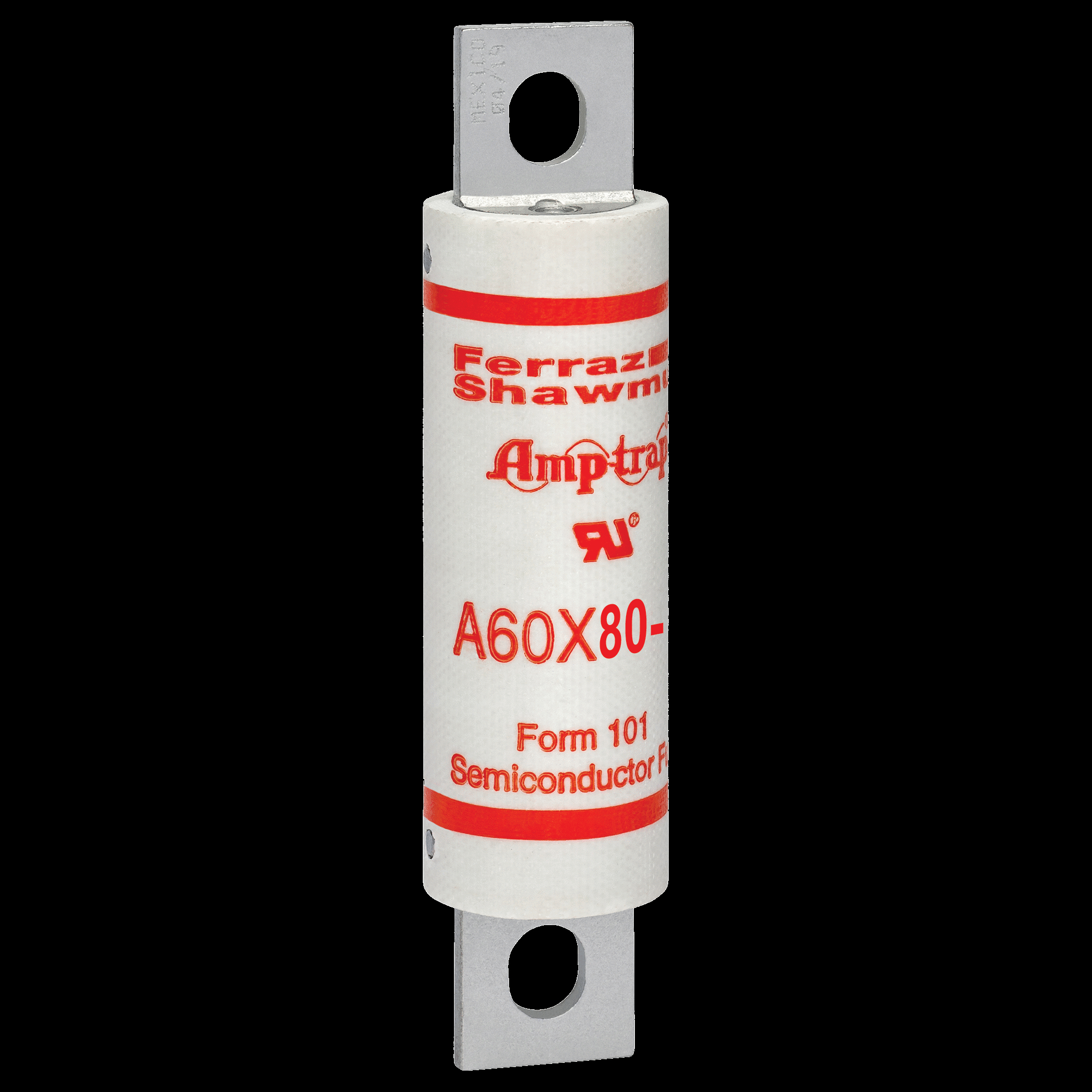

High Speed Fuse Amp-Trap® A60X 600VAC 80A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A60X80-4 | Electrozad South Part # 15919
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
A60X Amp-Trap® Form 101 high speed fuses are popular for the protection of higher voltage heavy rectifiers such as traction rectifiers. They can carry long sustained overloads common with heavy duty apparatus. 700A through 2000A sizes are of compact, hockey-puck design, able to provide high power protection in a small space.

Technical Information

Amperage
80 A
Applications
For Protection of Heavy Traction and Electro-Chemical as Well as Rectifiers and Other Heavy Duty Equipment
Connection Type
Blade
Contact Material
Tin Plated Copper, Tin Plated Brass, Silver Plated Copper and Silver Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
600 V
TC Connection
Bolted
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
High Speed, Fast Acting, Current Limiting
Voltage
600 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001943219
Construction
GMG/Poly Tube
GTIN
30782001943210
Weight
0.25 lb

Dimensions

Diameter
1 in
Length
4.41 in

Certifications & Compliance

Country of Origin
Mexico
