20 Amp, 120/208 Volt, Flush Mount Locking Receptacle, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # 2510-IG | Electrozad South Part # 15077
*Call For Price*
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

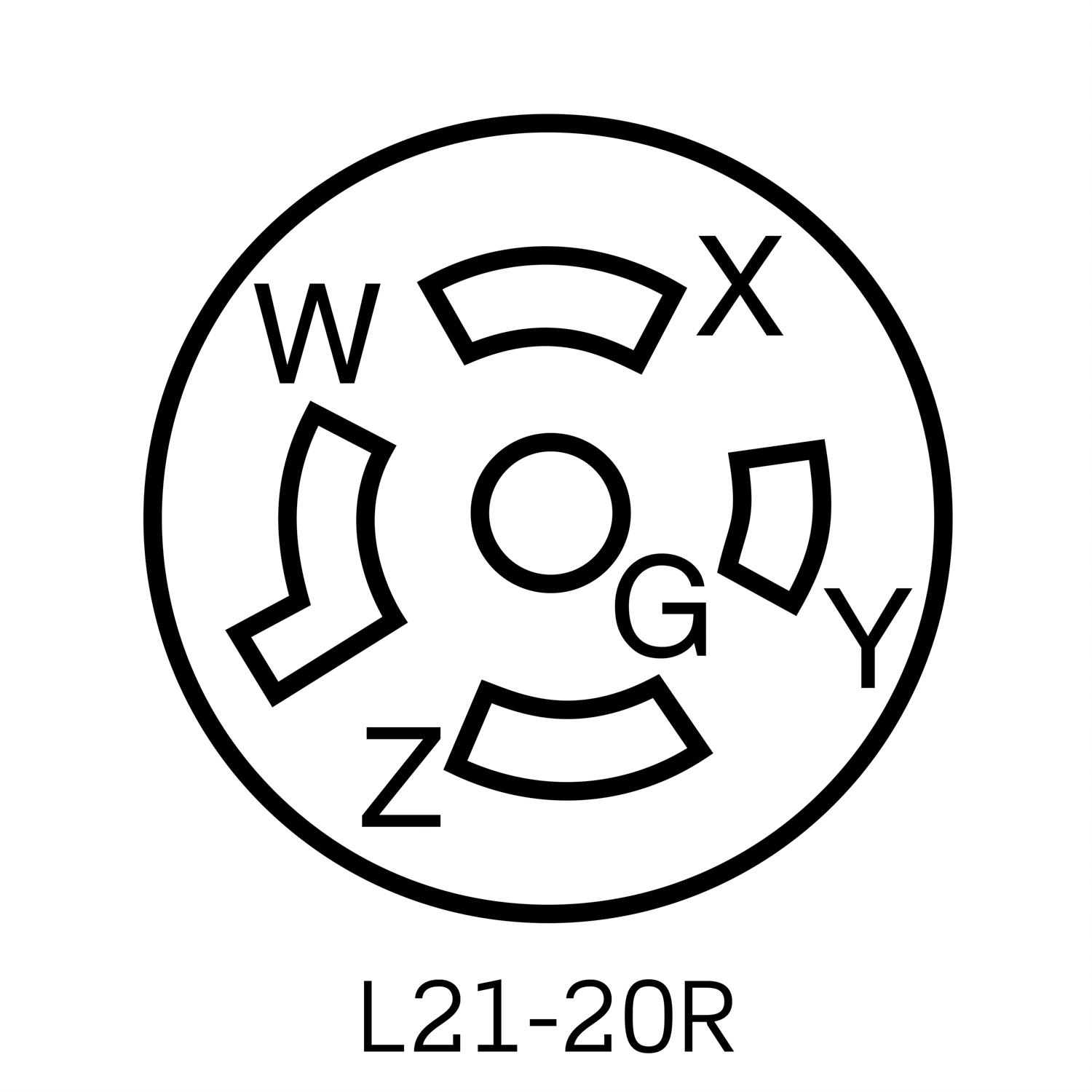

20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE

Technical Information

Amperage
20 A
Applications
Commercial
Base Material
Nylon,Nylon
Body Material
Valox 357
Connection Type
Back Wired,Side Wired
Cover Material
Valox
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-0 Per UL 94
Grounding
Isolated Ground
Horsepower
2 hp
Material
PBT
Mounting Type
Box
NEMA
WD-1
Number of Phases
3
Number of Poles
4
Number of Wires
5
Operating Temperature
-40 degrees C
Size
3.63 H x 1.69 W x 1.57 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 - 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
120 V
Wire Count
5
Wire Size
14 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477077214
Color
Orange
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTIN
00078477077214

Dimensions

Warranty Length
Lifetime Limited,Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
