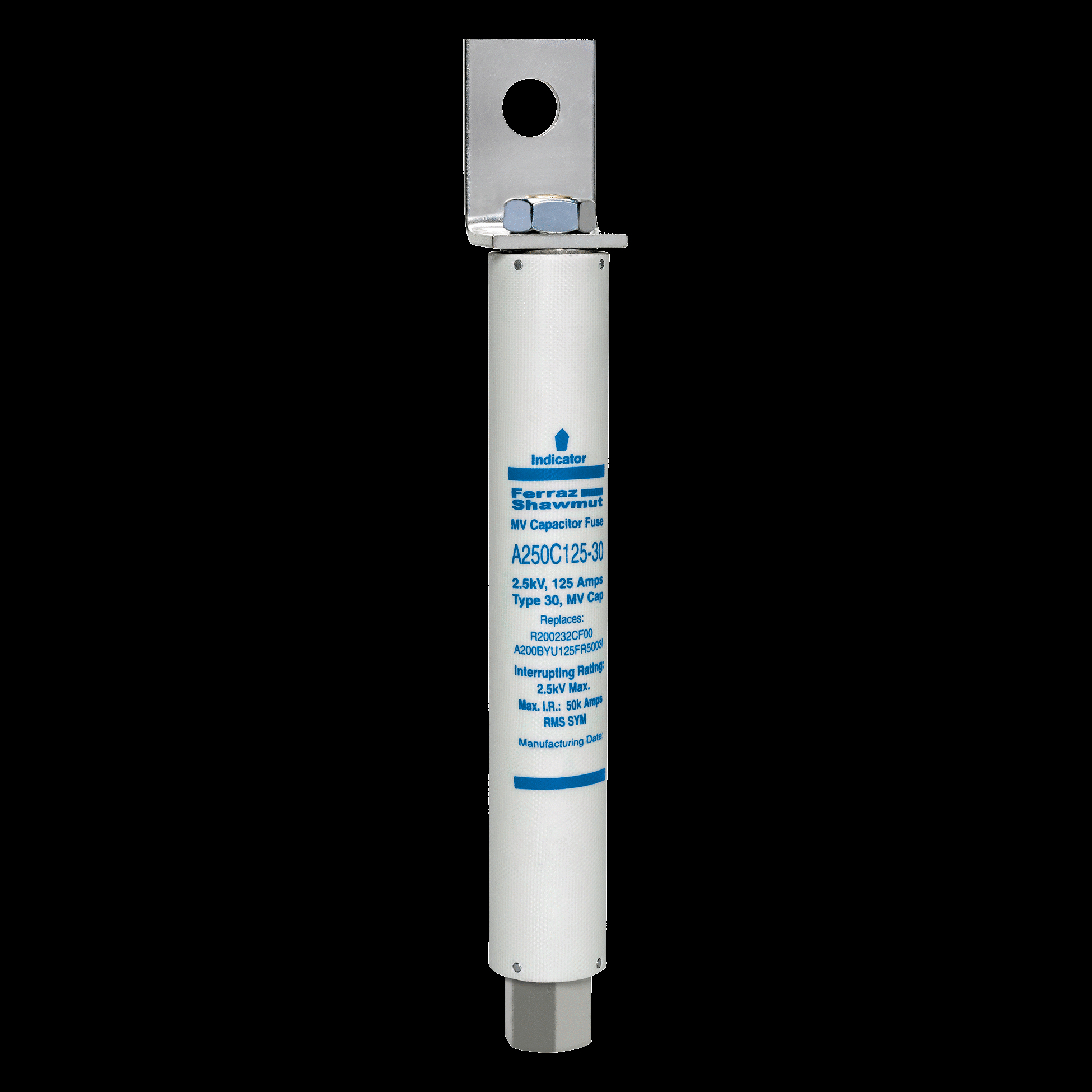

Medium Voltage Capacitor Fuse 2500VAC 125A Female Stud To L Bracket Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A250C125-30 | Electrozad South Part # 140238
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing

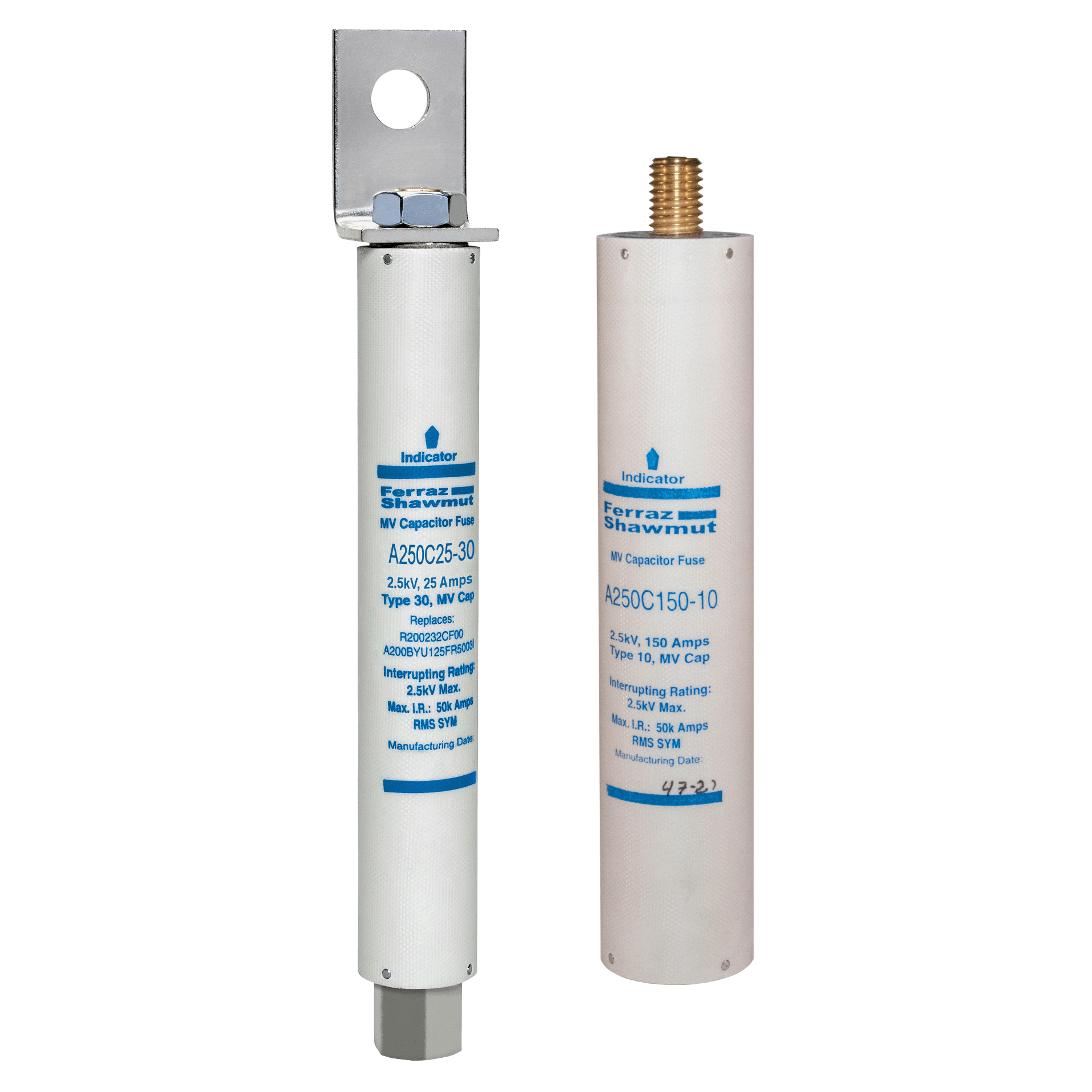

Mersen capacitor fuses are designed to ANSI C37-41. They are currentlimiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor. The various mounting configurations offer manufacturers a wide range of cost/space saving solutions and a large choice of equivalent products

Technical Information

Amperage
125 A
Applications
Protection of capacitors Power Factor Correction Equipment Harmonic Filtering Equipment Induction Heating System High Power Drive Welder
Connection Type
Female Stud To L Bracket
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Direct Mount
Rated Voltage AC
2500 V
TC Connection
F Stud To L Bracket
Terminal Material
Tin-Plated Copper And Tin-Plated Brass
Terminal Type
Female Stud To L Bracket
Type
Capacitor Protection Fuses
Voltage
2500 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001348328
GTIN
10782001348325
Weight
1.47 lb

Dimensions

Diameter
1.1 in
Length
9.41 in

Certifications & Compliance

Country of Origin
Mexico
