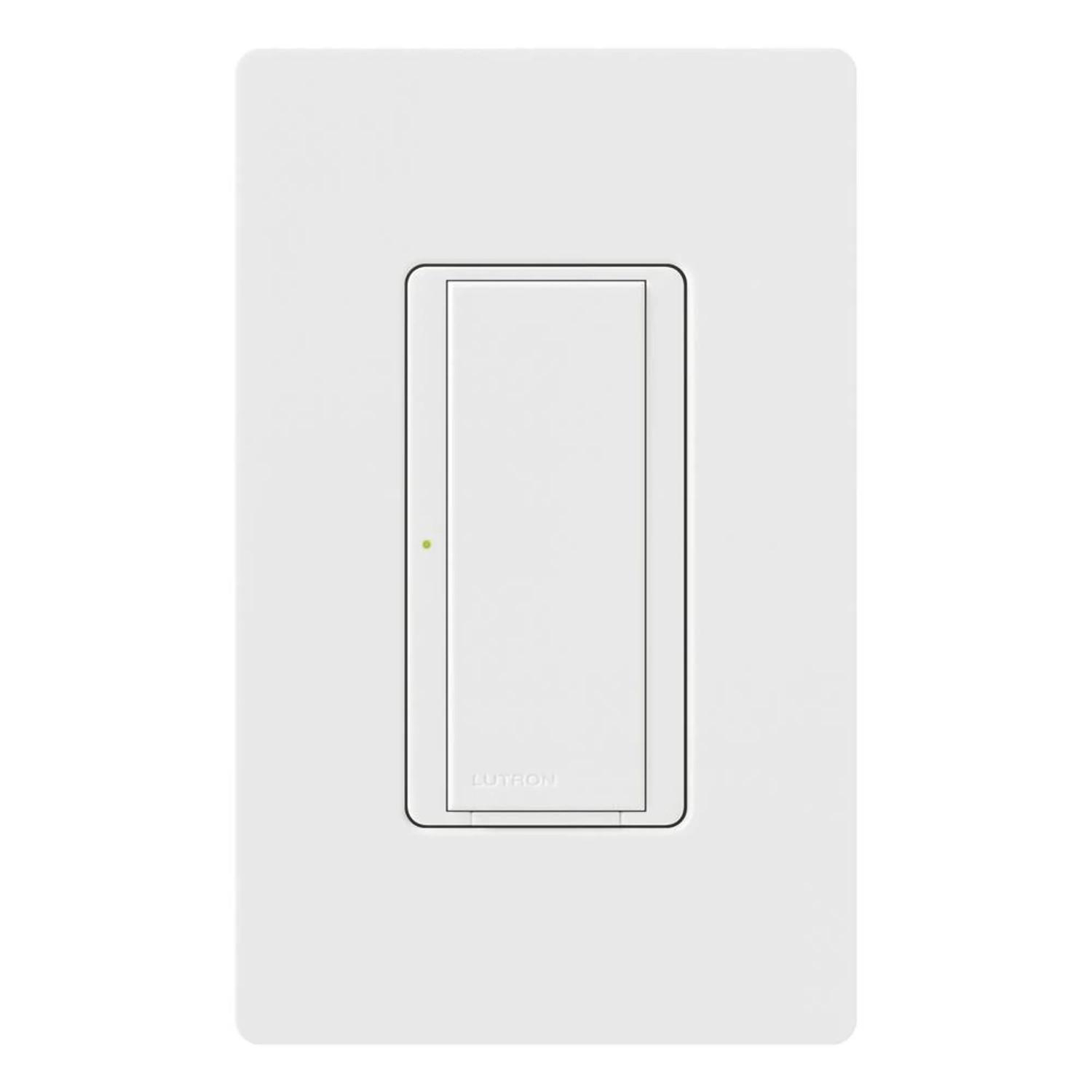

Product image for Digital switch 1P white 120V 8A Maestro
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Digital switch 1P white 120V 8A Maestro

Manufacturer: Lutron Dimmers | Catalog # MA-S8AM-WH | Electrozad South Part # 140184
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty

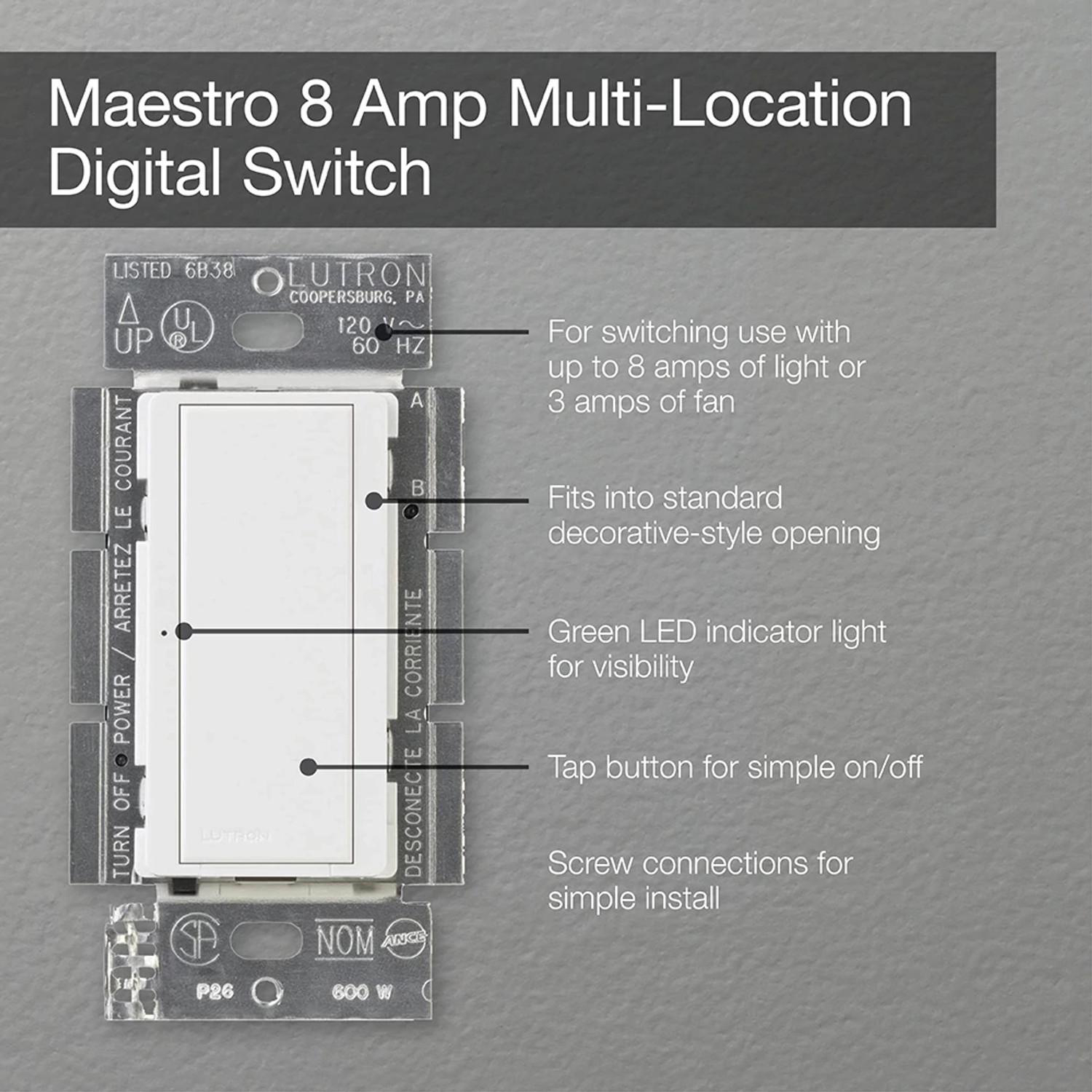

Maestro Switch - Gloss Finish, Incandescent/halogen, Magnetic Low-voltage, Electronic Low-voltage, Fluorescent, Multi-location/single-pole, 120v/8a

Technical Information

Actuator
Tapswitch
Amperage
8 A
Applications
Lighting
Bulb Compatibility
CFL/LED,ELV,Fluorescent,General Purpose Fan,Incandescent/Halogen,MLV
Connection Type
Screwed Terminal
Contact Configuration
N-O
Contact Rating
8 A
Enclosure
Plastic
Enclosure Material
Plastic
Insulation Material
Plastic
Lamp Type
Incandescent, Halogen, LED/CFL, Fluorescent
Material
Metal;Plastic
Mounting Type
Wallbox
Number of Poles
1
Operating Temperature
32 To 104 degrees F
Power Rating
960 W

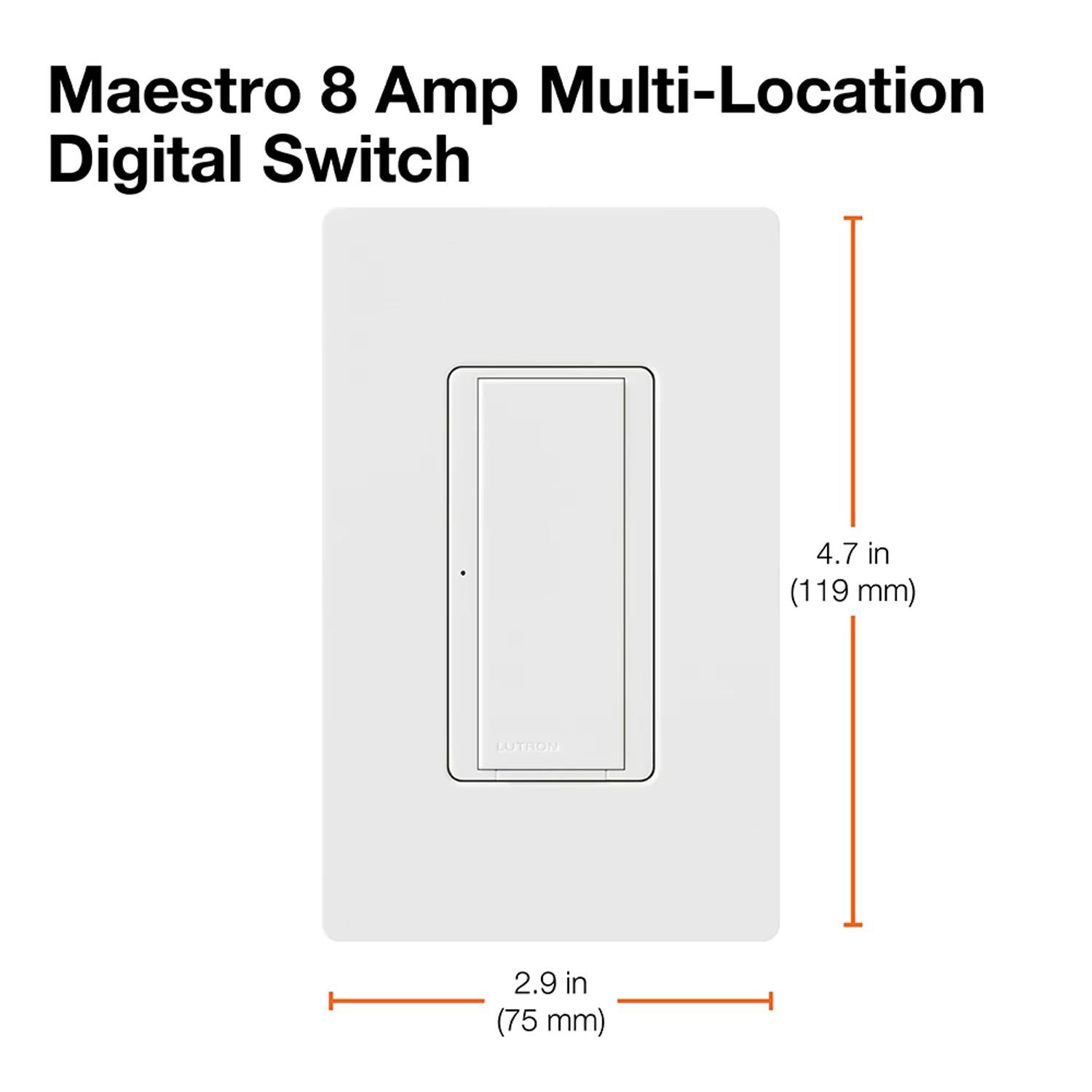

Size
75 in
Standard
UL CUL
TC Connection
Screw terminal
Temperature Rating
0 degrees C to 40 degrees C
Type
Electronic Switch,Multi-location/single-pole
Voltage
120 V
Wattage
960 W

Manufacturer Information

Brand
Lutron
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557082617
Color
White
Finish
Gloss
GTIN
00027557082617
Used With
Maestro Multi-Location Switch with Maestro Companion Switches

Certifications & Compliance

Country of Origin
USA
