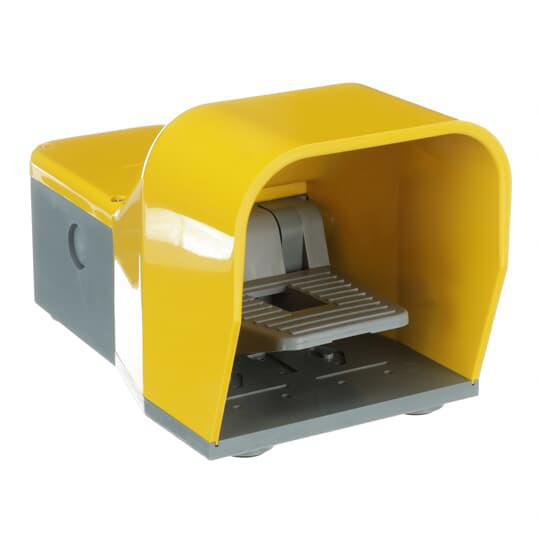

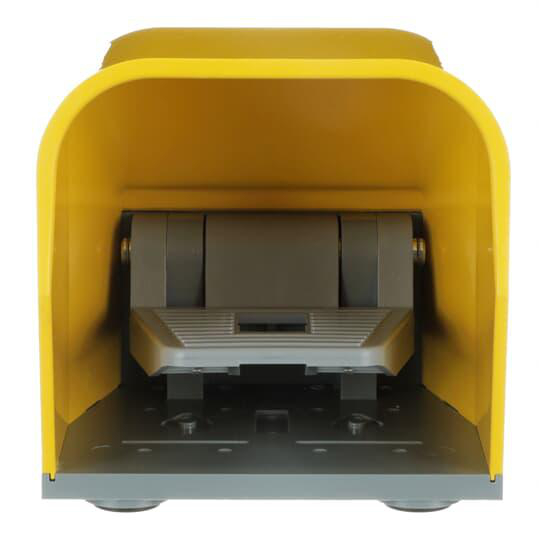

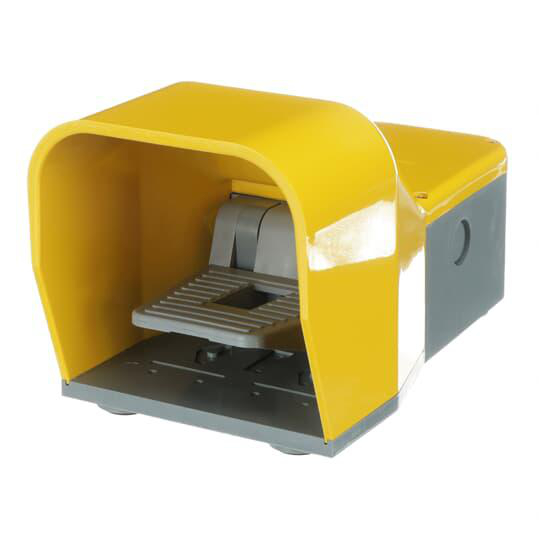

Switch foot free movement snap action 1NO-1NC yellow

Manufacturer: ABB Inc | Catalog # IPSY1A11 | Electrozad South Part # 139950
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
Foot switch with cover. Materials: base, cover and pedal made of shock resistant Bayblend® FR 90 material (alloyed polycarbonate and ABS). Free movement (momentary): contact position follows pedal movement: actuated when the pedal is pushed down, released when pedal is in a state of rest.

Technical Information

Action
Snap Action
Applications
For Foot Switch-Operated Machines Such as: Shearing Machines, Folding Machines, Spinning Lathes, Machine Tools, Wrapping Machines, Riveting Presses, etc.
Contact Configuration
1 NO, 1 NC
Enclosure Type
IP65
Material
Thermoplastic
Operating Cycles
300000 Mechanical
Standard
CSA C22-2 N°14,EN 60947-1,EN 60947-5-1,EN 61058-1,IEC 60947-1,IEC 60947-5-1,UL 508
Type
Foot switch

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
662019794600
Color
Yellow
Environmental Conditions
-10 to 70 °C Operating Temperature, -25 to 80 °C Storage Temperature
GTIN
03471522009685
