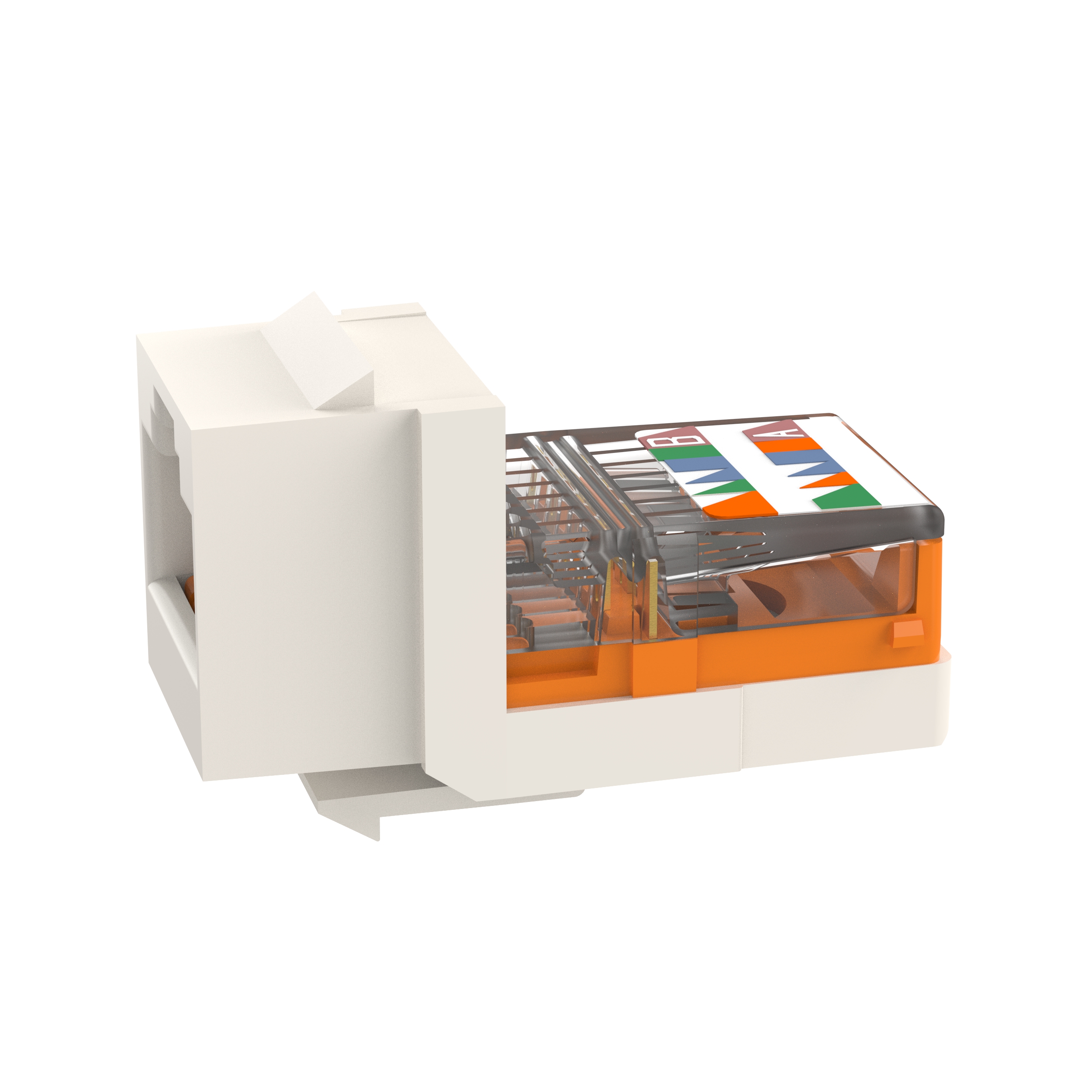

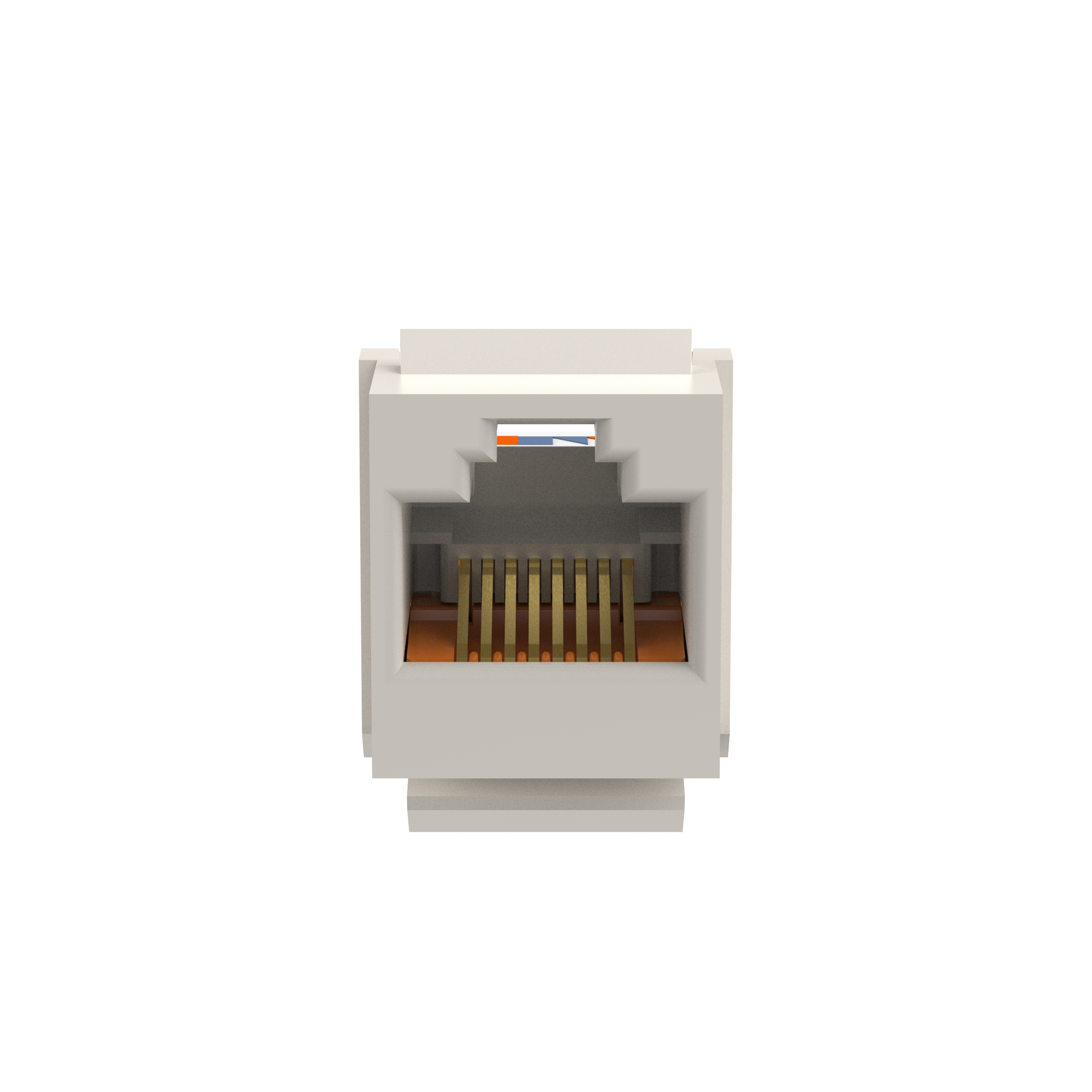

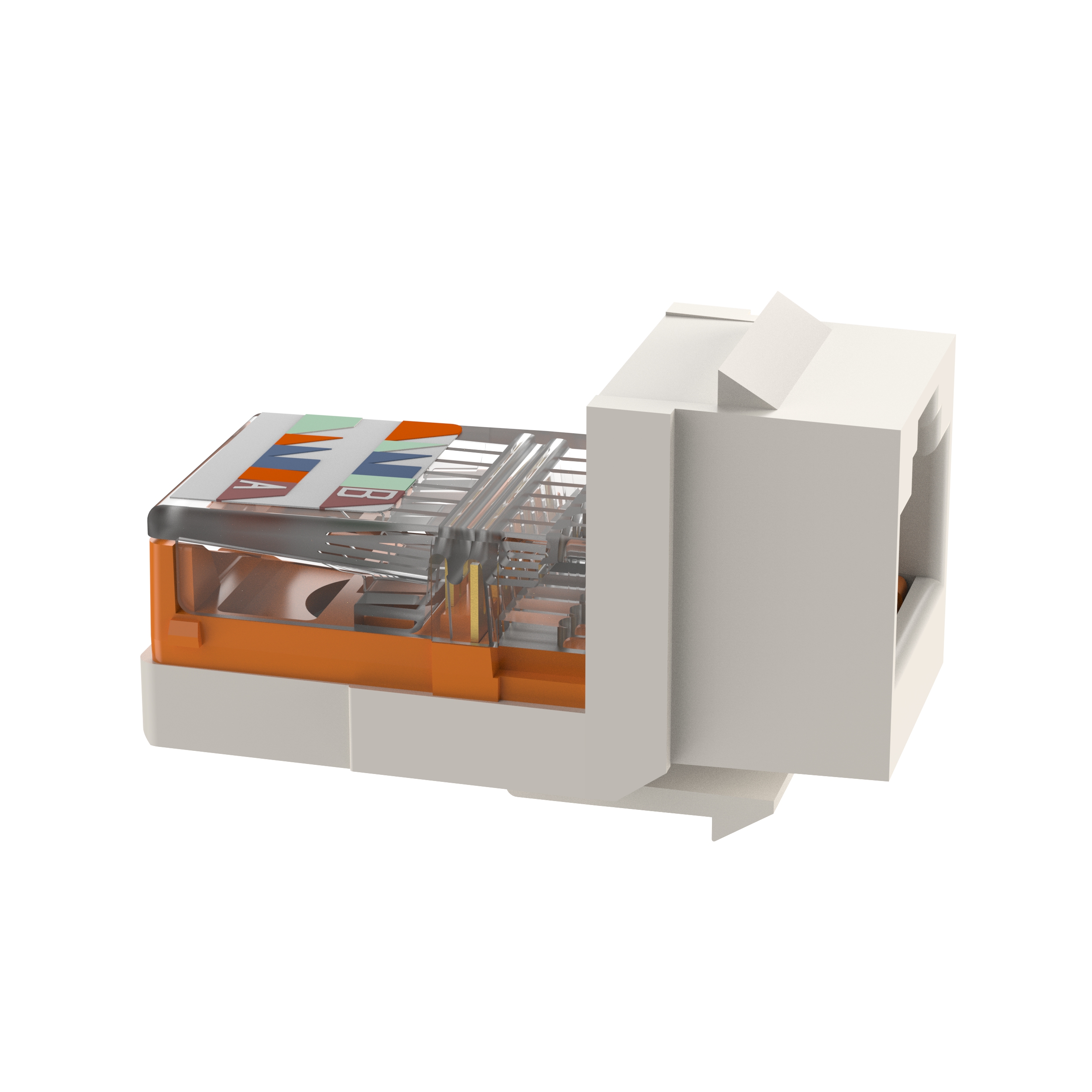

Module jack lead frame cat5e ABS/polycarbonate white

Manufacturer: Panduit | Catalog # NK5E88MWH-Q | Electrozad South Part # 137709
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual
Category 5e/Class D, 8-position keystone UTP jack module shall terminate unshielded twisted 4-pair, 22-24 AWG, 100 Ohm cable without the use of a punchdown tool. Optional tool ensures conductors are fully terminated. Universal label is colour-coded T568A and T568B wiring schemes. 100% performance tested, termination cap provides strain relief, helps control cable bend radius and securely retains wires in place and marked with quality control number for future traceability.

Technical Information

Applications
Unshielded
Cable Size
24-22 AWG
Cable Type
Category 5e
Connection Type
Insulation Displacement
Insulation Material
ABS/Polycarbonate
Material
Copper
Module Type
Keystone
Number of Ports
1
Number of Positions
8
Performance Level
Category 5e/Class D
Type
RJ45 8(8), Unshielded

Manufacturer Information

Brand
Panduit
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983997213
Color
White
GTIN
00074983997213
Product Type
NetKey Copper
Used With
Flat Cable, Round Cable, Solid Core

Certifications & Compliance

ARRA Compliant
No
CE Compliant
No,No
Country of Origin
China
Hazmat Flag
No
