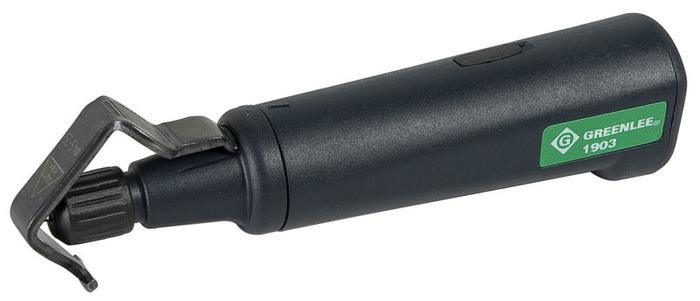

Stripper cable high carbon steel 0.18-1.57"

Manufacturer: Greenlee Tools | Catalog # 1903 | Electrozad South Part # 135772

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

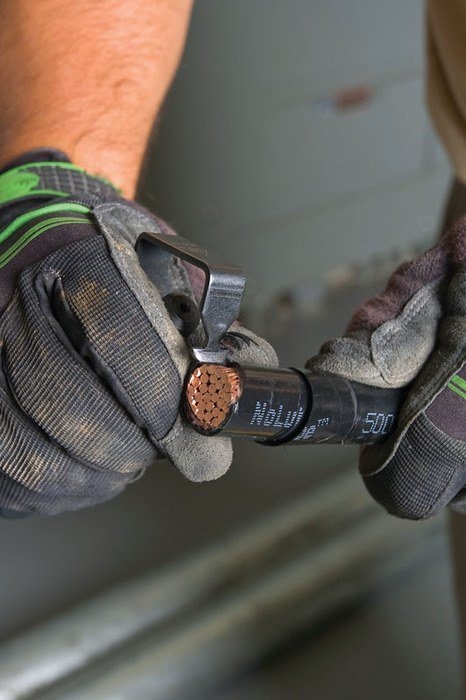

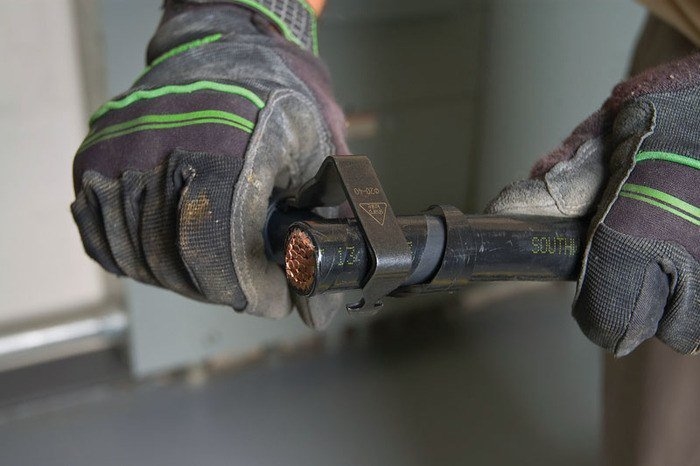

Cable stripping tool, ergonomic, strips 8AWG to 1250 kcmil THHN cable size range, 178 mm length. Triple action stripping - rotary, linear, and spiral - Window stripping is accomplished by combining 2 rotary cuts with a spiral cut in between them. Eliminates cable scoring. Blade height is adjustable to precisely match insulation thickness. Interchangeable cable guides for small and large cable diameters. Hook on the cable guide is used to start jacket removal without the need to use a screwdriver or pliers. Replacement blade storage pocket in the base of the tool. Long life, high-carbon steel blade. Ergonomic handle shape. Suitable for most jacket materials.

Technical Information

Blade Material
High Carbon Steel
Capacity

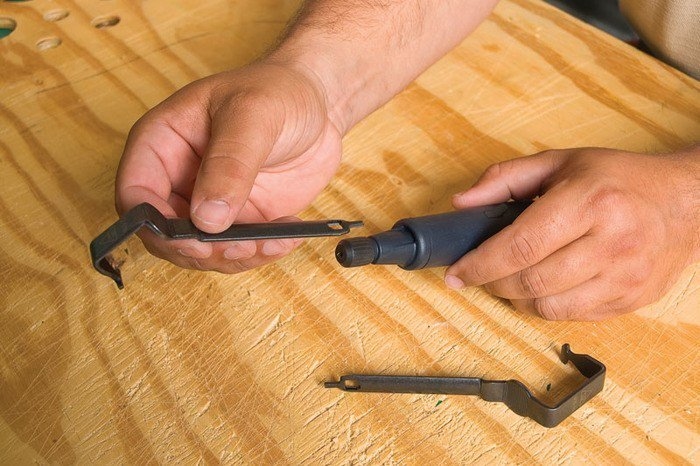

THNN cable size range 8 AWG to 1250 kcmil. Overall cable diameter .18" to 1.57". Cable diameter using small cable guide hook .18" to .98". Cable diameter using large cable guide hook .79" to 1.57:
Handle Type
Ergonomic
Type
Cable stripping tool
Wire Size
8 AWG - 750 kcmil

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310126799
GTIN
00783310126799
Weight
0.250 lb

Certifications & Compliance

Country of Origin
Sweden
