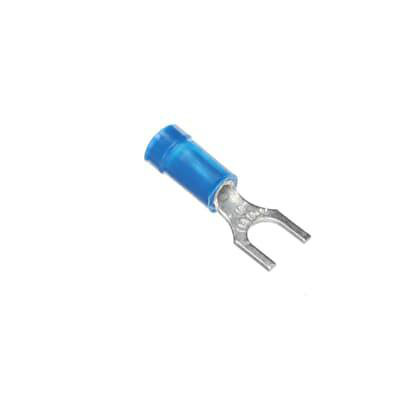

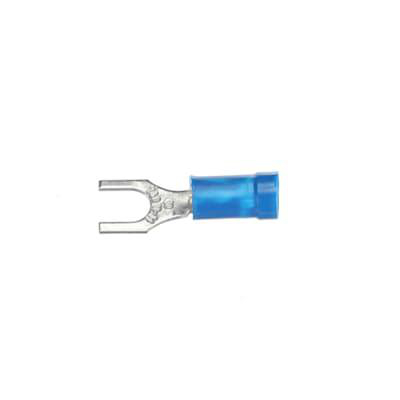

Crimp fork terminal H-14/18ga blue

Manufacturer: ABB | Thomas & Betts | Catalog # 14RB-10F | Electrozad South Part # 13146
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
The T B Sta-Kon series is designed to provide solutions to single cabling to terminal strip, they are available in many forms (fork, pin, tab, ring), colors matching ranges of wire gage, insulated or not. Made of copper lugs with plastic nylon insulated. Crimpable with tools provided. CSA approved.

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 V
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800707
Color
Blue
Finish
Tin Plated
GTIN
05414363137894
Used With
Round Conductors

Dimensions

Thickness
.03 in
