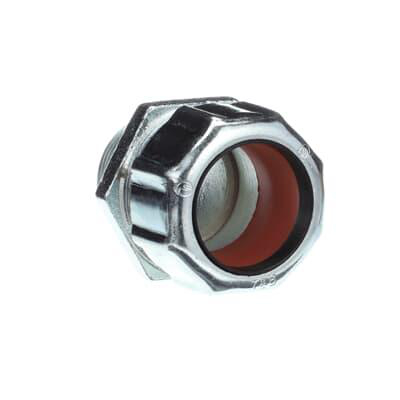

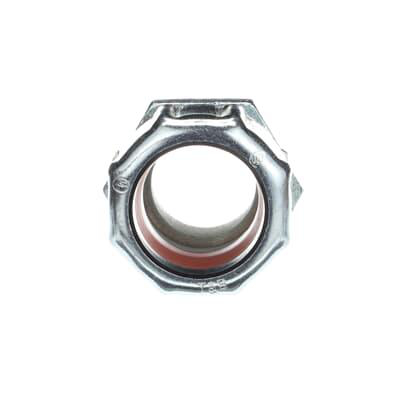

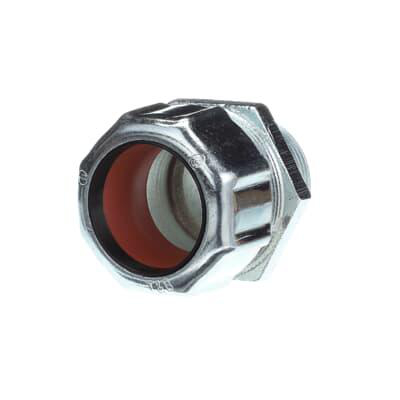

Connector strnrelf lqdtght 1-1/4in 1.375-1.485in

Manufacturer: ABB | Thomas & Betts | Catalog # 2557 | Electrozad South Part # 13010
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Technical Drawing
Liquidtight strain relief fitting is used for industrial flexible cord and cables, provides adequate strain relief. Neoprene bushing makes liquidtight installation, applies pressure against cable the full length of bushing.

Technical Information

Applications
Suitable for use in Hazardous Locations where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
Material
Malleable Iron
Size
1-1/4 in
Standard
CSA,UL E13938
TC Connection
NPT
Temperature Rating
105 degrees C
Thread Length
20.6 mm
Trade Size
1-1/4 in
Type
Straight

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210025575
Color
Metallic
GTIN
05414363139522
