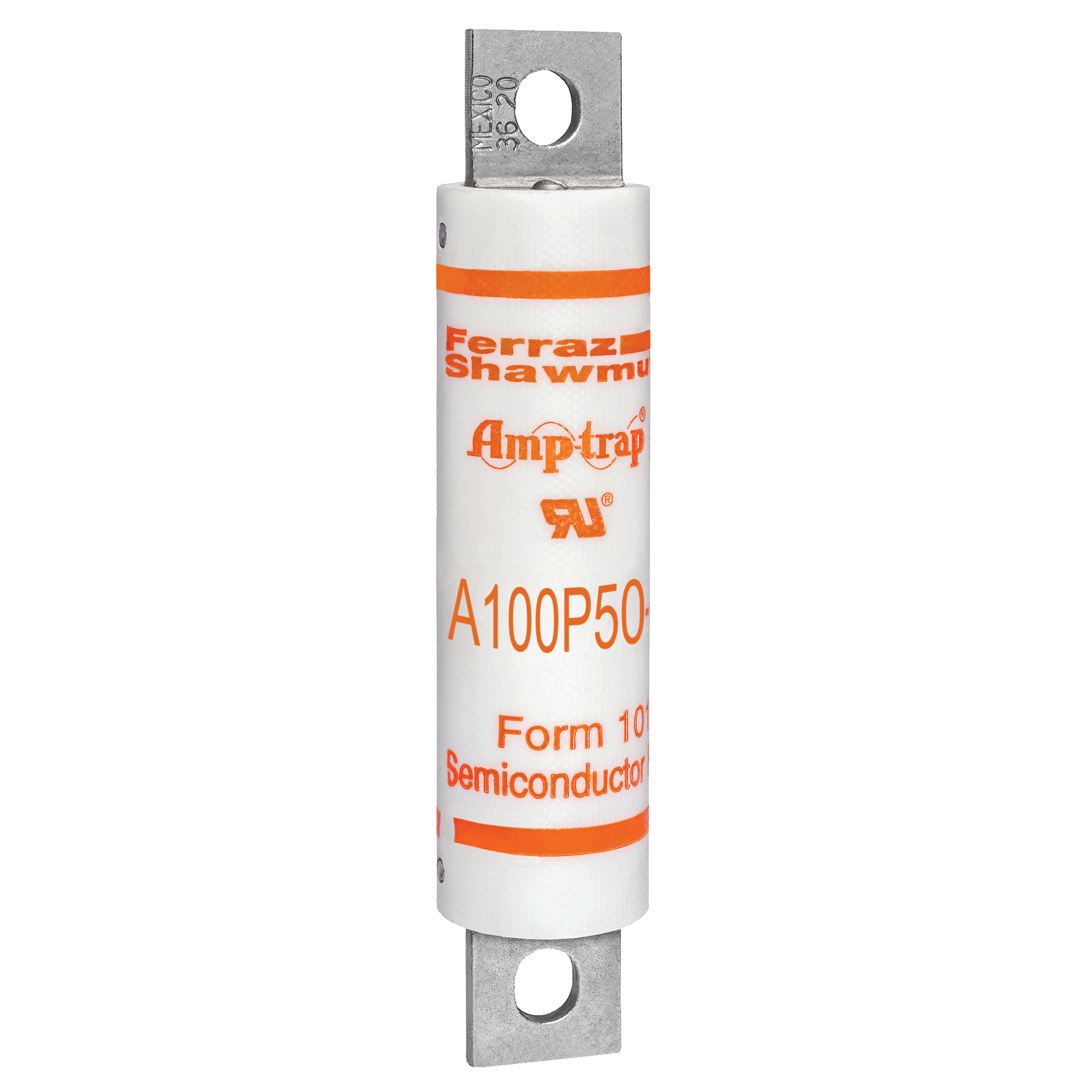

High Speed Fuse Amp-Trap® A100P 1000VAC 750VDC 50A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A100P50-4 | Electrozad South Part # 12883
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.

Technical Information

Amperage
50 A
Applications
For UPS Systems, AC and DC Drives, Reduced Voltage Motor Starters and Similar Applications Where Lower
Connection Type
Blade
Contact Material
Tin Plated Copper, Tin Plated Brass, Silver Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
1000 V
TC Connection
Bolted
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
Form 101, High Speed, Fast Acting, Current Limiting
Voltage
1000 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001949648
Construction
GMG
GTIN
30782001949649
Weight
0.35 lb

Dimensions

Diameter
1 in
Length
5 in

Certifications & Compliance

Country of Origin
Mexico
