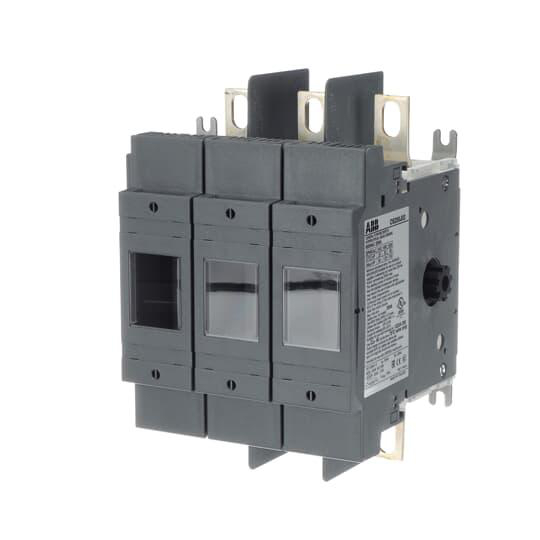

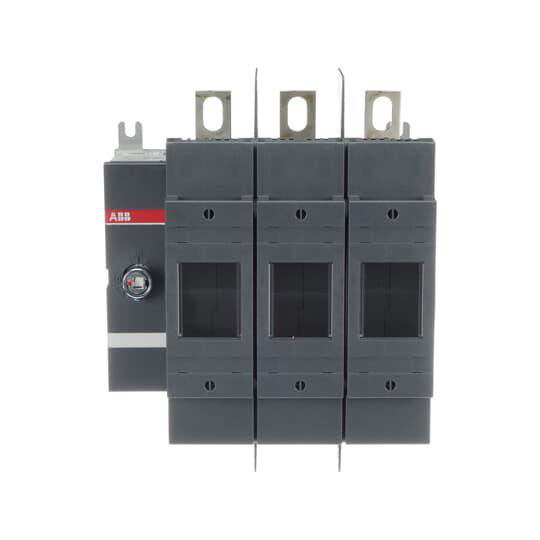

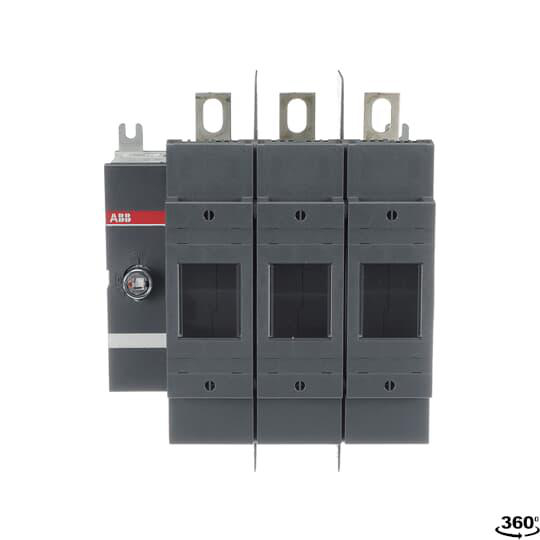

Product image for Switch disconnect open fusible 3-pole 200A 600V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Switch disconnect open fusible 3-pole 200A 600V

Manufacturer: ABB Inc | Catalog # OS200J03 | Electrozad South Part # 121792
$930.16 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days
Specification Sheet Product Brochure
Open fusible disconnect switch for use with J fuse type. Fuses are totally isolated in the 'OFF' position, reducing the risk of shock to authorized personnel. Basic construction provides flexibility and high performance in an extremely compact size. Quick make, quick brake mechanism. Finger proof construction plus terminal shrouds reduce the risk of touching live parts.

Technical Information

Amperage
200 A
Applications
For J Type Fuse
Mounting Type
Base Mounting
Number of Poles
3
Size
182x218x132mm
Standard
UL98IEC 60947-3
Terminal Type
Lug Terminals
Type
Disconnect switch
Voltage
1000 V

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
662019161679
GTIN
00662019161679
