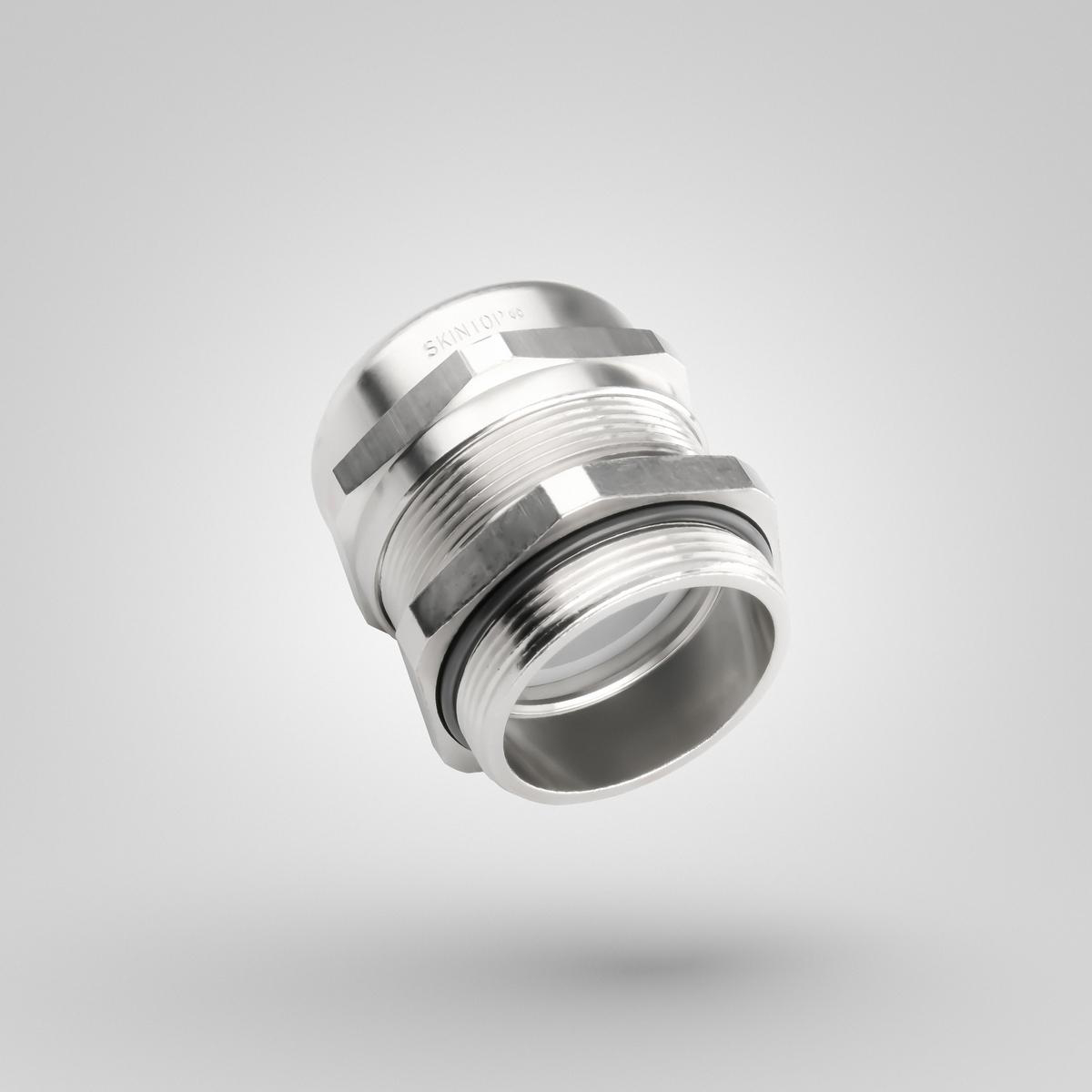

SKINTOP® MS-M 20X1.5

Manufacturer: Olflex Connectors | Catalog # 53112020 | Electrozad South Part # 103583
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Cable gland; M 20; Clamping range (min./max.): 7 - 13 mm; Wrench size 1: 24; Brass Nickel-plated; UV-resistant; IP 68 - 10 bar (30 min), IP 69;

Technical Information

Applications
For Manufacturing of Machines and Equipment, in Measuring, Controlling as well as in the Pharmaceutical Industry and for Medical Equipment
Material
Brass
Thread Size
8.5 mm L
Thread Type
UNC
Trade Size
M20 x 1.5
Type
Standard

Manufacturer Information

Brand
Lapp
Sub Brand
Skintop®

General Product Info

Color
Metallic
Finish
Nickel Plated

Dimensions

Diameter
24 mm
Length
37 mm
