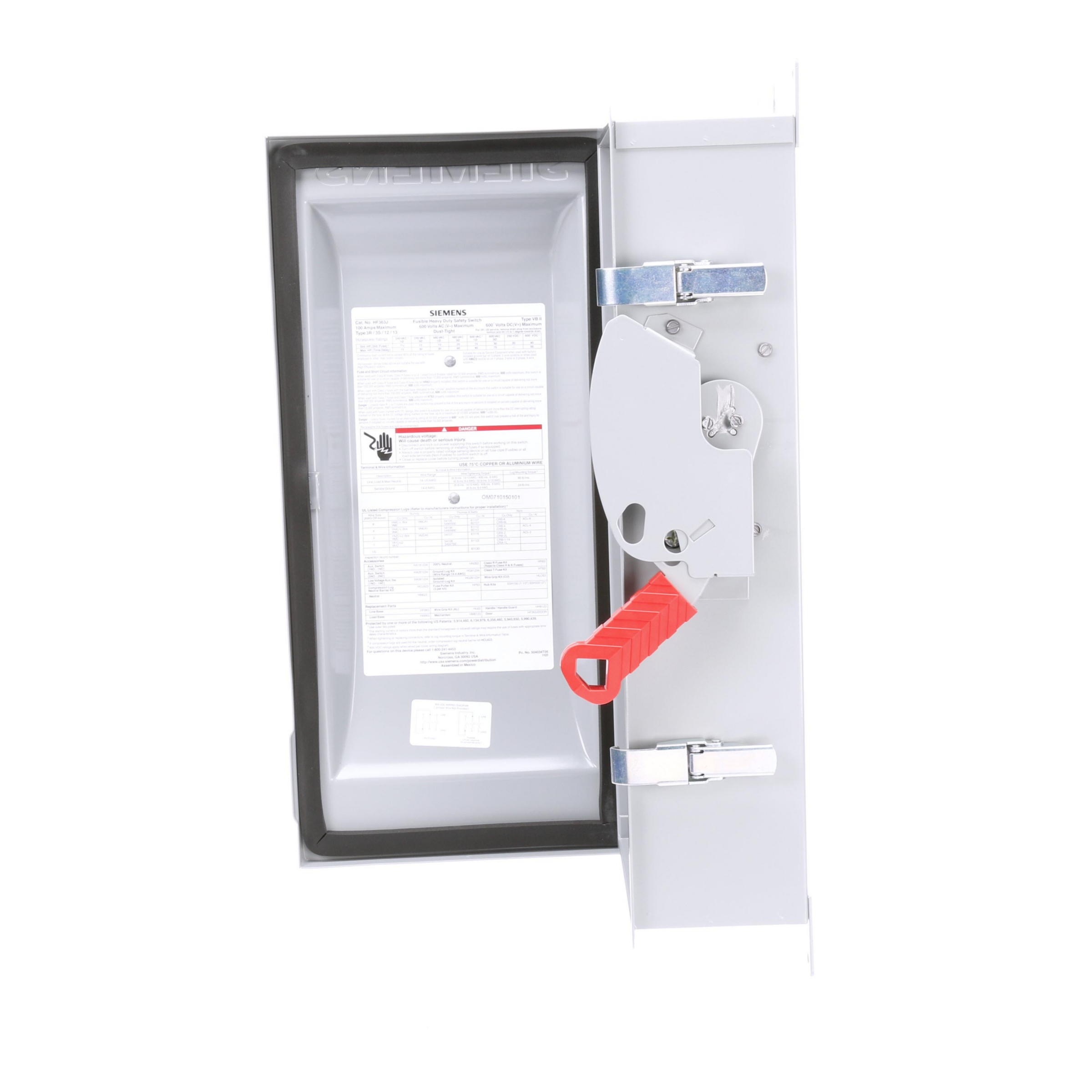

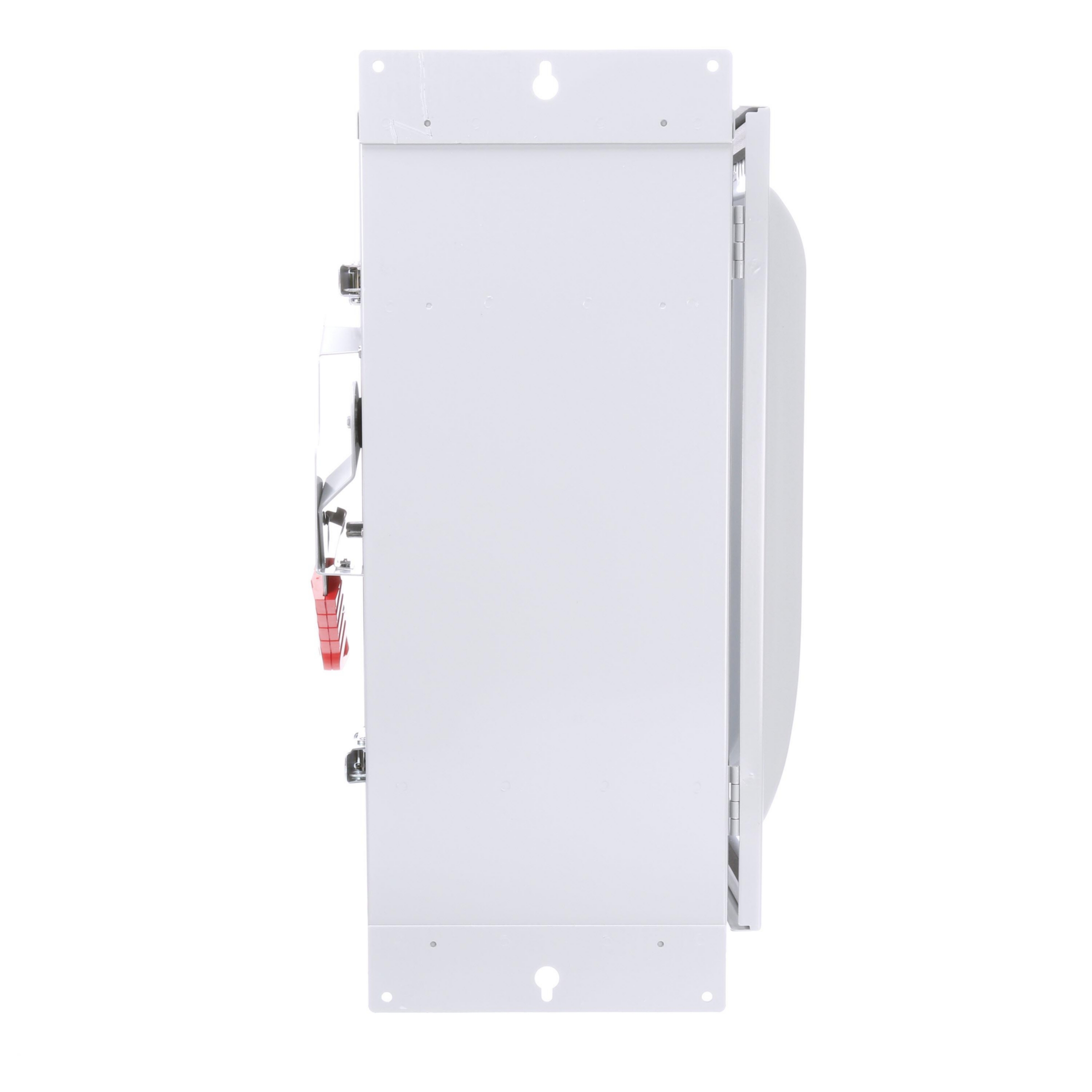

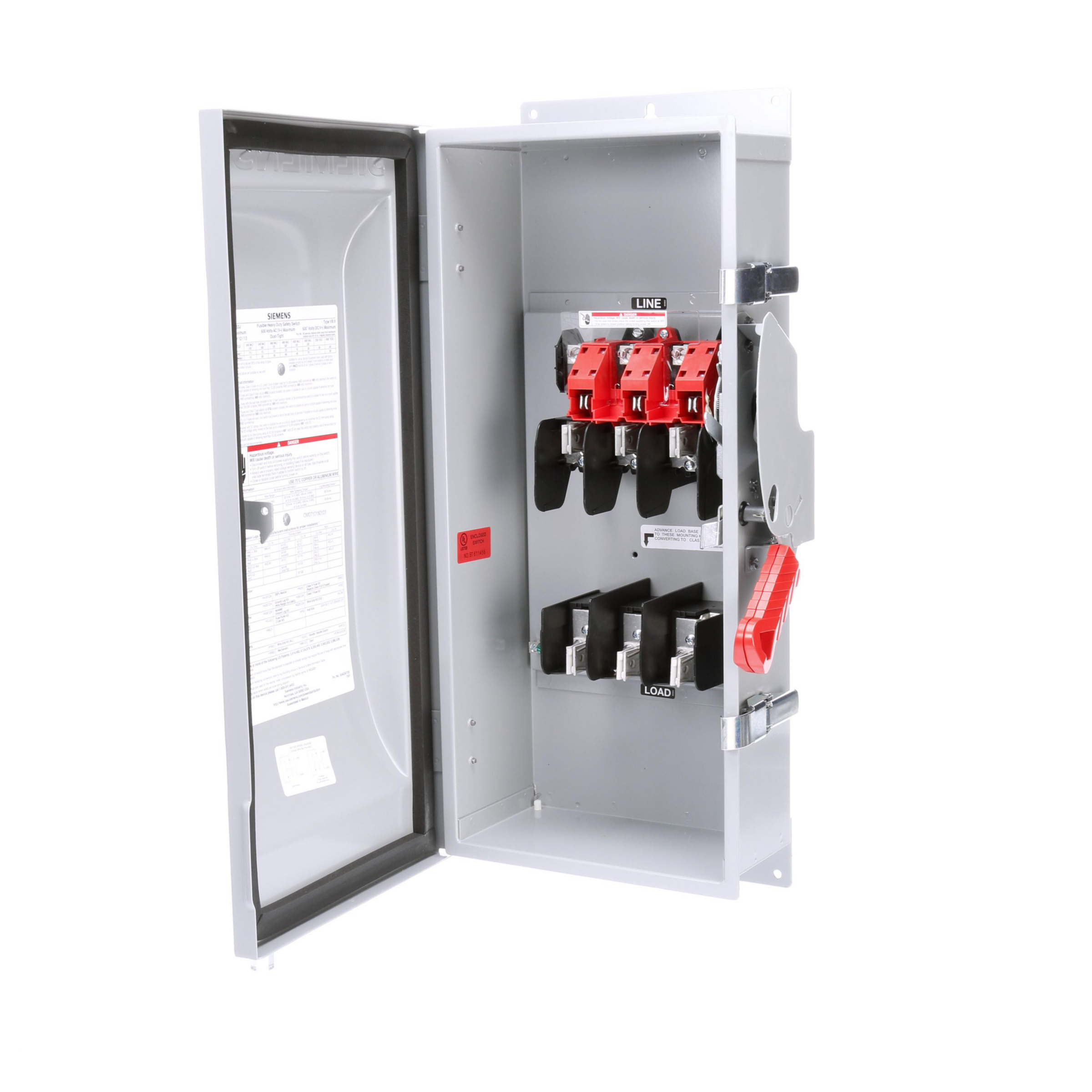

Safety switch fuse 3P 100A 600V 3fuse NEMA12

Manufacturer: Siemens Distribution | Catalog # HFC363J | Electrozad South Part # 103031
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page
Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle. Available with window door to view fuses and contacts.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
100 A
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Load Rating
3 W
Material
Steel
Mounting Type
2 or 3 Point Hole
Number of Poles
3
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
HEAVYDUTYSWITCH
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643511729
GTIN
00783643511729
Housing Material
304 Stainless Steel
Weight
1.720 lb

Dimensions

Height
8.250 in
Length
15.050 in
Width
29.050 in

Certifications & Compliance

Country of Origin
Mexico
